Nothing on my bike was put together correctly: Petcock valve version

Thread Tools

Search this Thread

Old 03-07-2011 | 09:49 PM
  #1
7moore7's Avatar
Thread Starter
Senior Member
MotoGP

Joined: Jul 2010
Posts: 3,871
From: Phoenix, AZ
7moore7 is on a distinguished road
Nothing on my bike was put together correctly: Petcock valve version

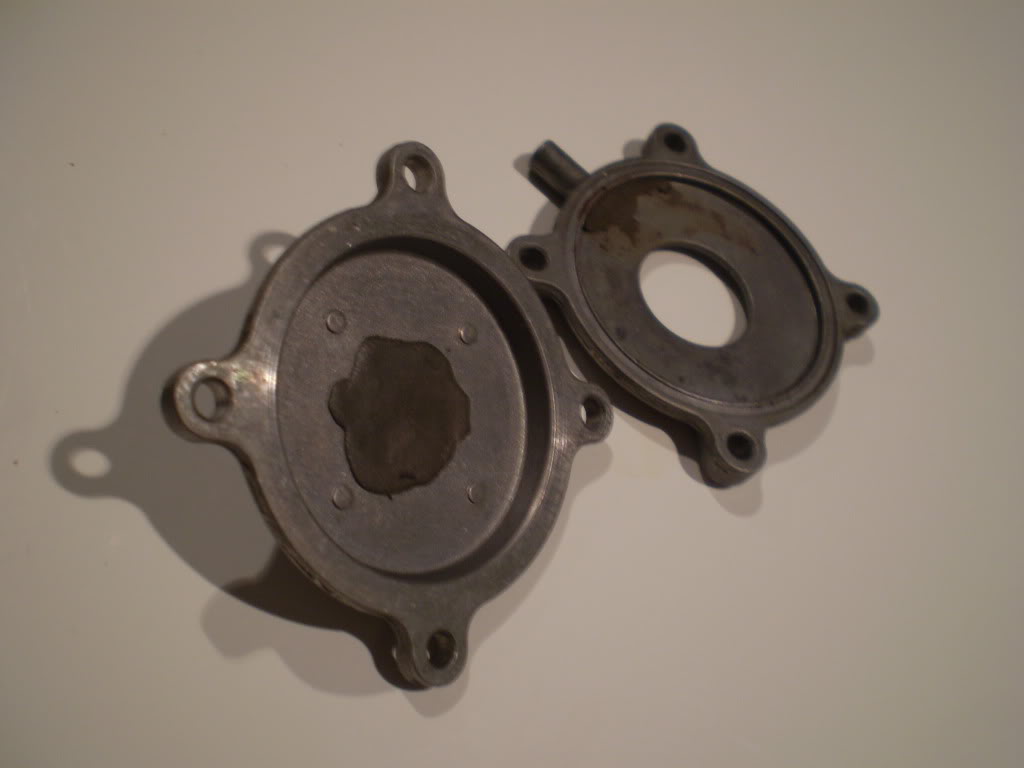

Soooo, figured I'd rebuild my petcock as I have gone through many other parts on the bike, and....

Uh, a spring came with the kit and isn't in the system, TWO holes are plugged with jb weld and one of the gaskets had a hole blown through it!

Should I try to drill the putty out of these? I can't imagine it's supposed to be there and would think that a working gasket would solve whatever issues the previous owner had...
Name:  P2040034.jpg
Views: 151
Size:  38.4 KB

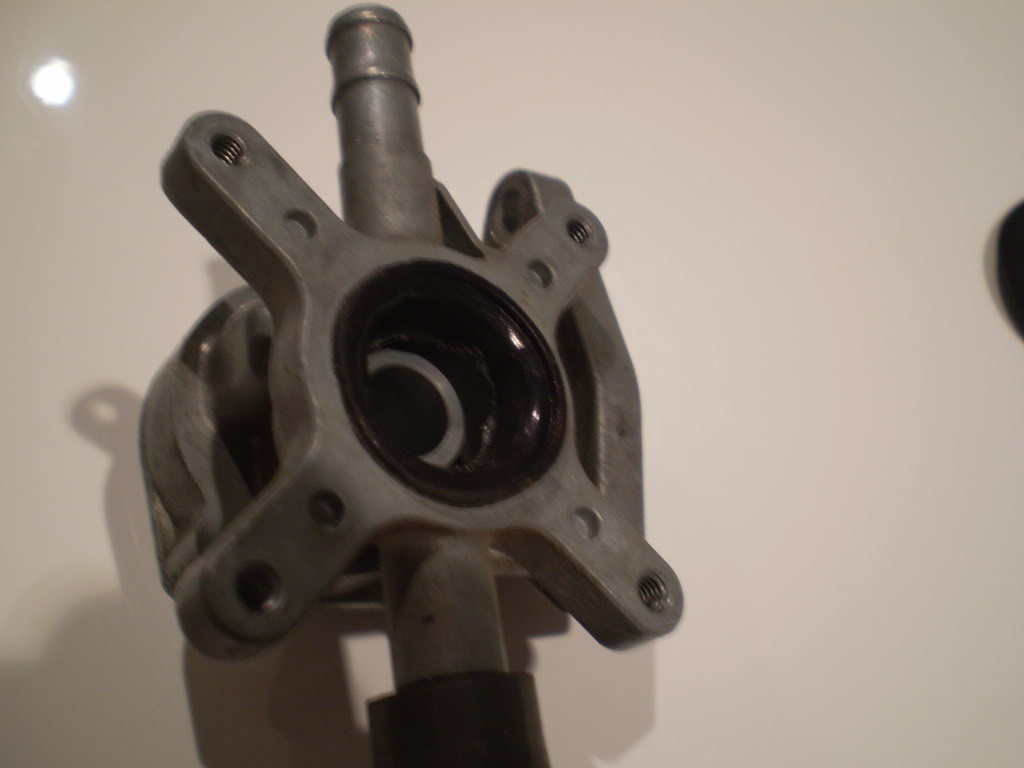

I have a rebuild kit, this part is supposed to be sealed completely with rubber:
Name:  P2040035.jpg
Views: 134
Size:  37.8 KB

It's a wonder this thing ran for as long as it did!
Old 03-07-2011 | 11:19 PM
  #2
saige's Avatar
the boss
SuperBike

Joined: Mar 2010
Posts: 1,182
From: largo,fl
saige is on a distinguished road
my opinion,look for another used one on ebay or pm inderocker,he may have one.
i have one,but i need it for my spare tank.if i didnt need it,i would send it your way.
Old 03-08-2011 | 12:54 AM
  #3
8541Hawk's Avatar
Banned
MotoGP

Joined: Aug 2007
Posts: 5,942
From: Lake View Terrace, CA
8541Hawk will become famous soon enough
Well do you have more time or more money?

If you have time, just clean the JB weld out and make sure the holes are clear. If you don't feel like messing with it, then see if you can find a used one but of course that will cost some extra cash.
Old 03-08-2011 | 07:29 AM
  #4
ninjagoalie's Avatar
Senior Member
Back Marker

Joined: Jan 2011
Posts: 160
From: Sunny Central Illinois
ninjagoalie is on a distinguished road
I saw a petcock on ebay last night, seemed cheap at $25. Sorry but don't remember the seller name.
Old 03-14-2011 | 08:37 PM
  #5
7moore7's Avatar
Thread Starter
Senior Member
MotoGP

Joined: Jul 2010
Posts: 3,871
From: Phoenix, AZ
7moore7 is on a distinguished road

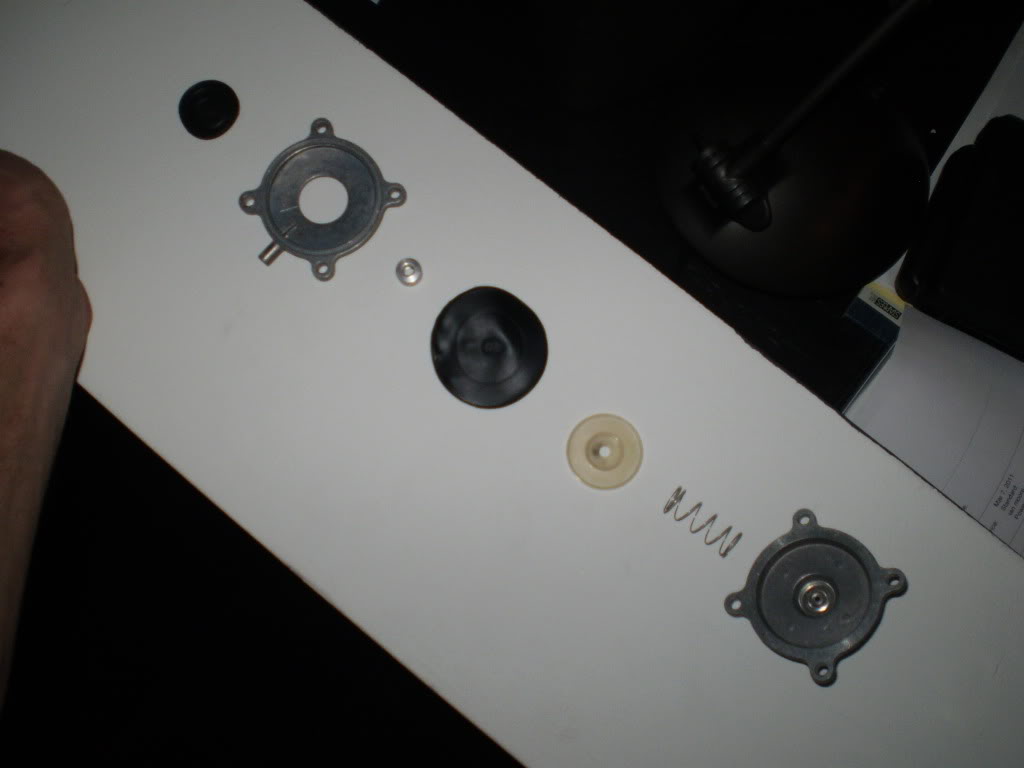

You guys were right: good thing I went with getting a new one, as mine had three pieces missing from it- the plastic circle, little metal circle, and spring. I swear it ran before this- maybe Honda threw in some extra parts?

Name:  P2110018.jpg
Views: 122
Size:  38.3 KB
Old 03-14-2011 | 09:45 PM
  #6
lazn's Avatar
Senior Member
MotoGP

Joined: Mar 2007
Posts: 3,132
From: Phoenix, AZ
lazn is on a distinguished road
Sure it ran before this, but it also didn't turn off.. That is the carb floats were the only thing preventing your cylinders from filling with gas when the engine was off.

Now when the engine is off, the petcock will also be off (no vacuum).
Old 03-14-2011 | 10:08 PM
  #7
7moore7's Avatar
Thread Starter
Senior Member
MotoGP

Joined: Jul 2010
Posts: 3,871
From: Phoenix, AZ
7moore7 is on a distinguished road
Exactly. I just figured I didn't know how to work a motorcycle tank when I pulled it and fuel ran out of the bottom! I also couldn't leave it in the sun as the air in the tank warmed up it pushed more gas out- in retrospect I should have given Honda more credit than designing something like this, but hell that was like a year ago and I didn't know any better lol
