Lowering Link?
07-25-2008 | 02:36 PM
#1
Thread Starter
Member
Squid
Joined: Jun 2008
Posts: 59
From: Asheville, NC
Lowering Link?
Hey there I have a 98 superhawk and wondered if anyone knows where a lowering link can be purchased or if there is another way to drop a hawk about 1.5 or 2 inches? I would like to be able to firmly have both feet on the ground on any terrain just for stability you know?
07-25-2008 | 03:34 PM
#2
Uhhhhh..huh.huh..Member..
Superstock
Joined: Apr 2008
Posts: 269
From: Vancouver, WA
07-25-2008 | 06:05 PM
#3
Thread Starter
Member
Squid
Joined: Jun 2008
Posts: 59
From: Asheville, NC
07-26-2008 | 08:37 AM
#4
Thread Starter
Member
Squid
Joined: Jun 2008
Posts: 59
From: Asheville, NC
So it seems like many people want to lower the hawk, but it is kinda expensive to have someone machine a new dogbone. I heard some say that spacers in the rear shcok might lower the bike. Does that make for a firmer ride? The guy I bought the bike from was a lot bigger than me. I would love for teh suspension to be a bit softer. I think that I barely compress the rear spring. Is there a way to get a bit more compression out of it. I weigh only 165 so maybe not.
08-08-2008 | 11:31 AM
#5
Thread Starter
Member
Squid
Joined: Jun 2008
Posts: 59
From: Asheville, NC
Well I found a place to lower the hawk. Honda place here in the area. The son of the owner used to have a superhawk so he knew what to use. If interested PM me and I will give you the name and number of the place. He could ship you the link or whatever. I wont post it cause i am not advertising for the as much as i am saying hell yeah to the fact that I got my bird lowered!!!! Part cost about $70
09-30-2008 | 09:13 PM
#11
rubber side down
Squid
Joined: May 2008
Posts: 62
From: Portland, Or
Here is a few photo's of my lowered VTR. I used stock CBR links and spaced it with steel spacers. Dropped about 2 inches in the back, and had to keep the front at about 1.5 inches (clearance). It is more than adequate, I have taken passengers. Trimmed the kickstand, which it's right at the threshold of balance, i will be welding the lip back on it!
Not for twisties mind you! I have drug my toe a couple of times...... always have to adjust my position when cornering tight. But much nicer for cruising low and slow!

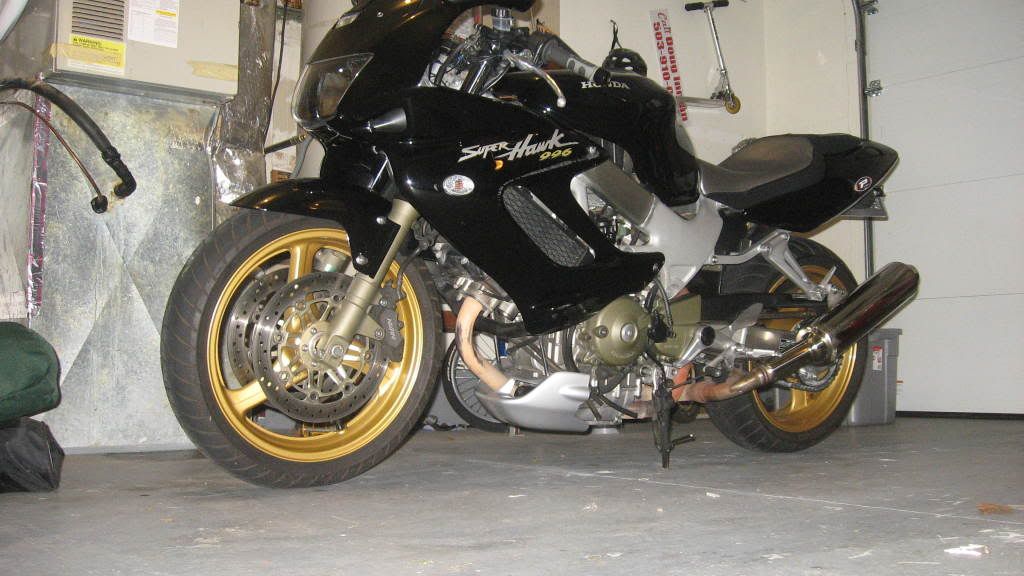

<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0595.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0595.jpg" border="0" alt="VTR lowered angle View"></a>

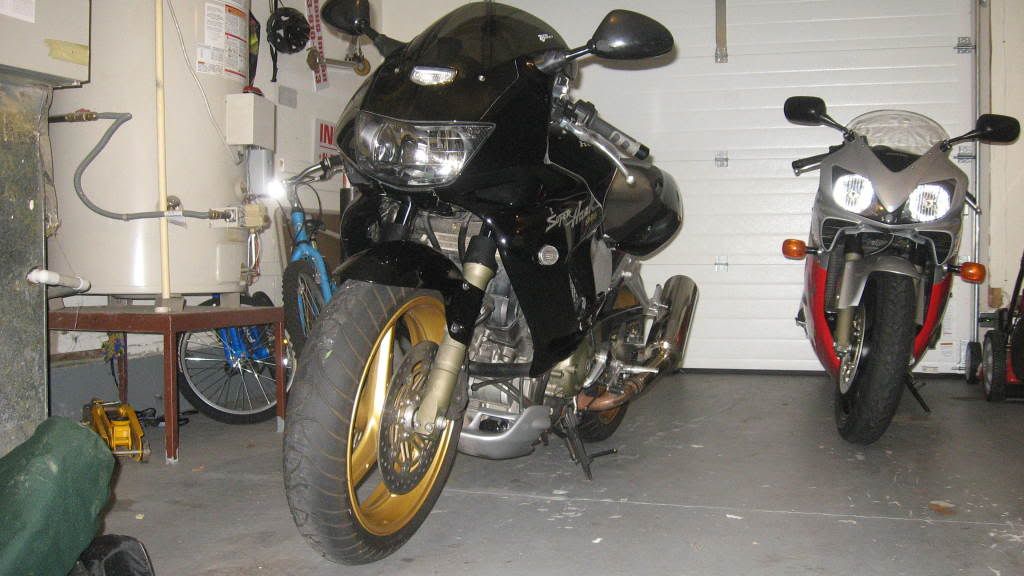

<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0597.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0597.jpg" border="0" alt="VTR lowered front View"></a>

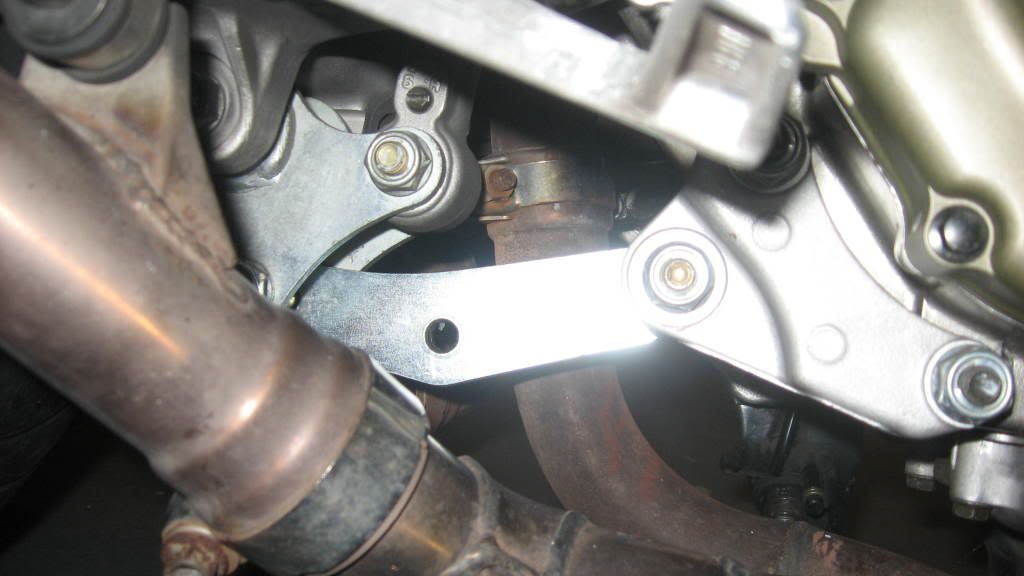

<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0601.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0601.jpg" border="0" alt="VTR lowered link View"></a>

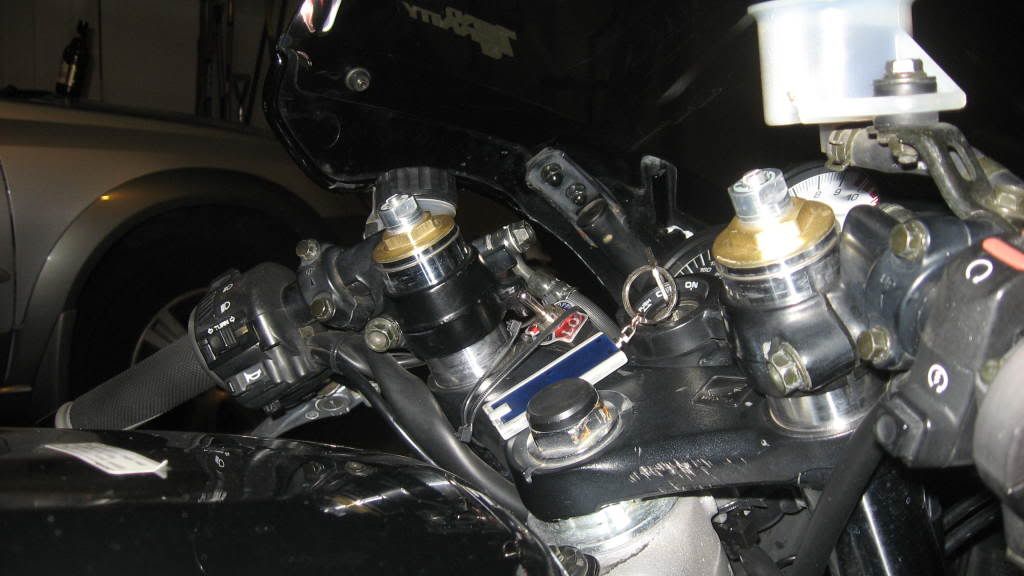

<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0602.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0602.jpg" border="0" alt="VTR lowered fork View"></a>

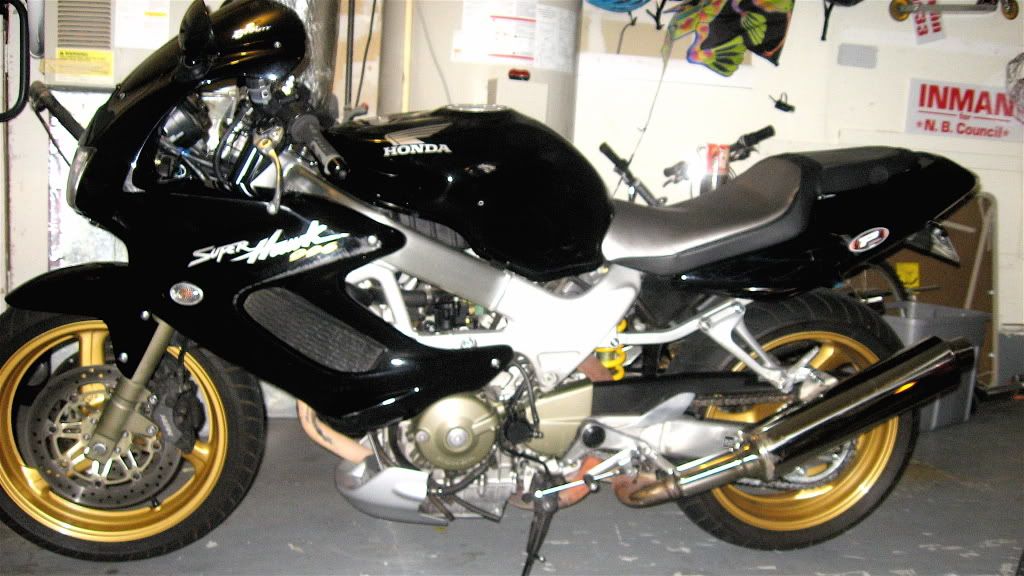

<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0603.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0603.jpg" border="0" alt="VTR lowered Side View"></a>

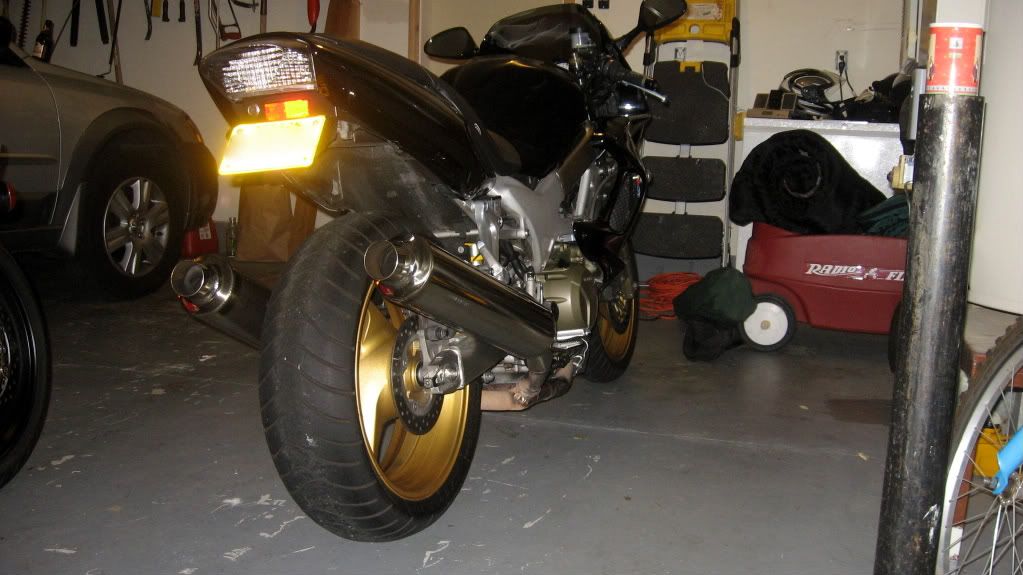

<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0598.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0598.jpg" border="0" alt="Photobucket"></a>
Not for twisties mind you! I have drug my toe a couple of times...... always have to adjust my position when cornering tight. But much nicer for cruising low and slow!
<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0595.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0595.jpg" border="0" alt="VTR lowered angle View"></a>
<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0597.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0597.jpg" border="0" alt="VTR lowered front View"></a>
<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0601.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0601.jpg" border="0" alt="VTR lowered link View"></a>
<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0602.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0602.jpg" border="0" alt="VTR lowered fork View"></a>
<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0603.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0603.jpg" border="0" alt="VTR lowered Side View"></a>
<a href="http://s290.photobucket.com/albums/ll256/markdinman/?action=view¤t=IMG_0598.jpg" target="_blank"><img src="http://i290.photobucket.com/albums/ll256/markdinman/IMG_0598.jpg" border="0" alt="Photobucket"></a>
09-30-2008 | 09:14 PM
#12
rubber side down
Squid
Joined: May 2008
Posts: 62
From: Portland, Or
Here is a few photo's of my lowered VTR. I used stock CBR links and spaced it with steel spacers. Dropped about 2 inches in the back, and had to keep the front at about 1.5 inches (clearance). It is more than adequate, I have taken passengers. Trimmed the kickstand, which it's right at the threshold of balance, i will be welding the lip back on it!
Not for twisties mind you! I have drug my toe a couple of times...... always have to adjust my position when cornering tight. But much nicer for cruising low and slow!
http://i290.photobucket.com/albums/l...n/IMG_0595.jpg
http://i290.photobucket.com/albums/l...n/IMG_0597.jpg
http://i290.photobucket.com/albums/l...n/IMG_0601.jpg
http://i290.photobucket.com/albums/l...n/IMG_0602.jpg
http://i290.photobucket.com/albums/l...n/IMG_0603.jpg
http://i290.photobucket.com/albums/l...n/IMG_0598.jpg
Not for twisties mind you! I have drug my toe a couple of times...... always have to adjust my position when cornering tight. But much nicer for cruising low and slow!
http://i290.photobucket.com/albums/l...n/IMG_0595.jpg
http://i290.photobucket.com/albums/l...n/IMG_0597.jpg
http://i290.photobucket.com/albums/l...n/IMG_0601.jpg
http://i290.photobucket.com/albums/l...n/IMG_0602.jpg
http://i290.photobucket.com/albums/l...n/IMG_0603.jpg
http://i290.photobucket.com/albums/l...n/IMG_0598.jpg
Last edited by BlackHawk04; 09-30-2008 at 09:16 PM. Reason: added photos
I know your thread is alittle old...but i just purchased a SH and im also about 5'9..please share the info for the 70 dollar links.....thanks in advance.......
10-07-2009 | 06:57 AM
#16
Member
Squid
Squid
Joined: Apr 2009
Posts: 47
Meeting with the owner today. Will see what can be done and by how much. Will post back as soon as I get more information. I've seen his stuff and it's nice.
http://www.soupysperformance.com/homepage.html
http://www.soupysperformance.com/homepage.html
10-08-2009 | 07:48 AM
#17
Member
Squid
Squid
Joined: Apr 2009
Posts: 47
The owner of Soupys performance measured my 03 hawk and will come up with a prototype the the superhawk. Should be a couple of weeks but as soon as he's done he will install one on my bike. Once a prototype is done any changes can be done quickly. I will take pictures and post information as I get it.
10-24-2009 | 07:25 PM
#18
Member
Squid
Squid
Joined: Apr 2009
Posts: 47
The lowering link is done. Very nice part. It's infinitely adjustable via a turnbuckle. It took about 10 minutes to install. Really cool. The pictures are from my bike, 2003 Superhawk, stock headers, Yosh slipons.
Here's the link to his site.
http://www.soupysperformance.com/cat...00/7418618.htm
Paul
Here's the link to his site.
http://www.soupysperformance.com/cat...00/7418618.htm
Paul
