Time for Stage I
02-17-2009 | 05:48 AM
#152
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL
Measured cylinder bores last night on the donor motor and was glad to see they are not outta round or tapered and are we'll within the 0.10mm max specs. Both bores look to average around 97.98mm after taking x & y readings top/middle/bottom.
Additionally, I measured the JE Piston and they came in at 97.90mm about 0.02mm smaller than the stock pistons, so no clearance issues in the bores with 0.08mm difference, which is also we'll within the 0.20mm max spec.
Additionally, I measured the JE Piston and they came in at 97.90mm about 0.02mm smaller than the stock pistons, so no clearance issues in the bores with 0.08mm difference, which is also we'll within the 0.20mm max spec.
02-20-2009 | 07:26 AM
#153
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL
Got a big box of parts from Ron Ayers last night and just figured out that the inlet & exhaust valve stem seals are different
I ordered 8 inlet not realizing there were 2 part numbers...
Should I re-order 4 exhaust valve stem seals or can these bad boys be used interchangeably?
RC
I ordered 8 inlet not realizing there were 2 part numbers...
Should I re-order 4 exhaust valve stem seals or can these bad boys be used interchangeably?
RC
03-11-2009 | 12:14 PM
#161
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL

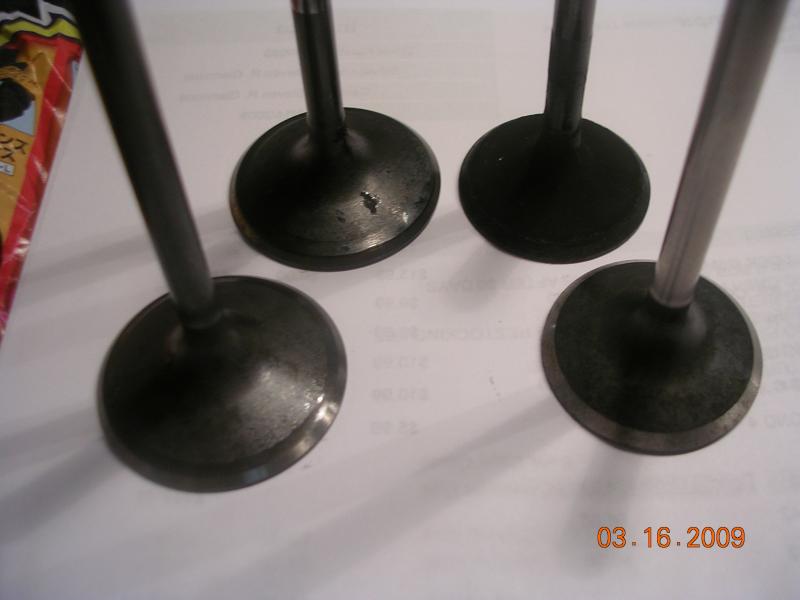

I have new 4 exhaust valves (14721-MBB-000 $167.56) and 4 new inlet valve stem seals (12209-MBB-003 $28.32) all ordered from Ron Ayers and still in the bags unopened that I can sell ya cheaper than they can and you wont have to wait 4 weeks for shipping either
How's $150.00 delivered sound?Send me a PM and I'll give you my PP addy...RC
03-11-2009 | 12:19 PM
#162
Senior Member
SuperBike
Joined: Dec 2005
Posts: 1,689
From: South Lake Tahoe, CA, USA
New exhaust valves are a good idea. They tend to get pitted quickly, which makes them transfer heat less effectively, which makes them get pitted faster...
Might as well replace them while you're in there.
RC has a set because he decided to install OS valves.
Might as well replace them while you're in there.
RC has a set because he decided to install OS valves.
03-11-2009 | 12:22 PM
#163
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL
03-11-2009 | 04:14 PM
#165
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL

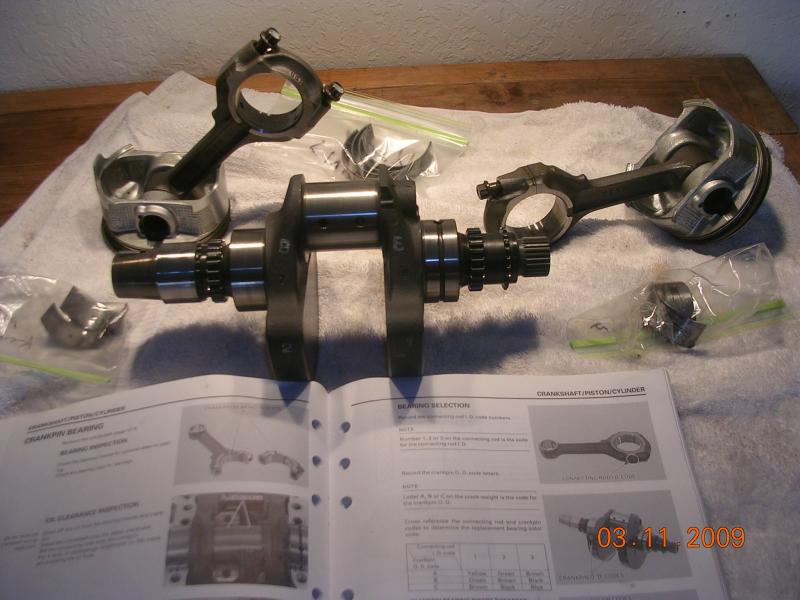

Here's a new pic, but I'll never be as fast as Triplets, I mean Truckinduc
Did the ole bearing color boogie tonight so i can order new rod and main bearings.
Anybody want to guess what their crank weighs?
Did the ole bearing color boogie tonight so i can order new rod and main bearings.
Anybody want to guess what their crank weighs?
03-11-2009 | 04:34 PM
#167
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL
hehehe, if da shoe fits
That's not far off! Mine weighs in at 11.8 lbs...one big baby...couldn't hardly believe it was so heavy
If you have a stock flywheel my advise to one and all is to lighten it cuz with a crank this heavy the heavier flywheel is overkill...RC
That's not far off! Mine weighs in at 11.8 lbs...one big baby...couldn't hardly believe it was so heavy
If you have a stock flywheel my advise to one and all is to lighten it cuz with a crank this heavy the heavier flywheel is overkill...RC
03-11-2009 | 06:08 PM
#169
Senior Member
SuperBike
Joined: Dec 2005
Posts: 1,689
From: South Lake Tahoe, CA, USA
Yeah, a v-twin crankshaft is heavy. You don't have pistons-rods 180 degrees out of phase to counterbalance. i4 cranks can be balanced independently of pistons and rods. V-twin cranks have to counterbalance the rods and pistons, etc.
Some day (next winter?) I'll build an engine with Carillo rods and correspondingly lightened crank.
I need to get back to my analysis of this problem. I made some more progress a while back. It got difficult and time-consuming to present it in a form that was comprehensible to non-engineers, and I got busy with other stuff.
Some day (next winter?) I'll build an engine with Carillo rods and correspondingly lightened crank.
I need to get back to my analysis of this problem. I made some more progress a while back. It got difficult and time-consuming to present it in a form that was comprehensible to non-engineers, and I got busy with other stuff.
03-17-2009 | 03:53 AM
#172
Senior Member
SuperBike
Joined: Aug 2005
Posts: 1,858
From: Fort Wayne, IN
Is 'a lot' accurate enough. I didn't weigh mine when it was out but I remember it being pretty hefty.
Where did you find those? Care to disclose what you paid?
03-17-2009 | 05:54 AM
#173
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL
Is 'a lot' accurate enough. I didn't weigh mine when it was out but I remember it being pretty hefty.
A lot is right! I'd have mine lightened and add light weight rods if I had another $2K burning a whole in my pocket
Where did you find those? Care to disclose what you paid?
A lot is right! I'd have mine lightened and add light weight rods if I had another $2K burning a whole in my pocket
Where did you find those? Care to disclose what you paid?
!! couldn't break 100 though??
03-17-2009 | 06:42 AM
#178
Senior Member
SuperSport
Joined: Jul 2005
Posts: 562
From: NYC

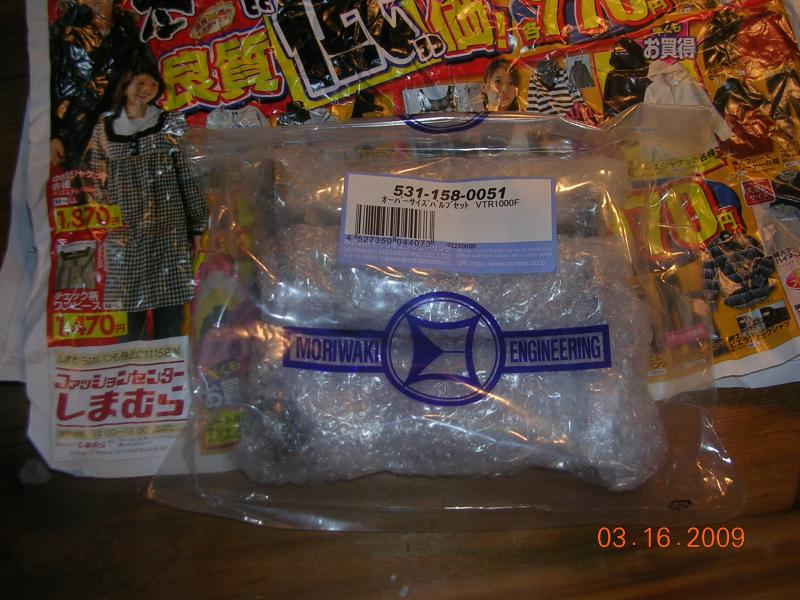

, I have been into my motor by force, not by choice. So I need some education about what the Moriwaki valves have over the OEM - weight? seat cut?By the way, I was thinking 10 lbs. on the crank.
03-17-2009 | 06:49 AM
#180
Thread Starter
Fastest Color
SuperBike
Joined: Jul 2007
Posts: 2,091
From: Lithia, FL
Chickenstrip, The OS valves are 0.5mm larger on exhaust and 1.0mm larger on intake which allow you to force more air/fuel down it's cullet! Yes, new seat will have to cut in moving them out.
MC Leather, 116 would be nice! I'm not holding my breath, but would be very happy with that...RC
MC Leather, 116 would be nice! I'm not holding my breath, but would be very happy with that...RC
