Bandit00085

Ok so I got bored the other night and at the urging of one of my buddies I mounted a tail section off of a 06 R6 Raven that he had laying around. Obviously I have not finished it, I just got the subframe cut and rough fitted. It will support my weight but I need some longer bolts and some spacers and i still need to mount the electronics. Found places for most of them. I will finish it up when I get back from Iraq next year and then I will post the rest of the swap. I just figured that I would put it on here and get your thoughts on it.

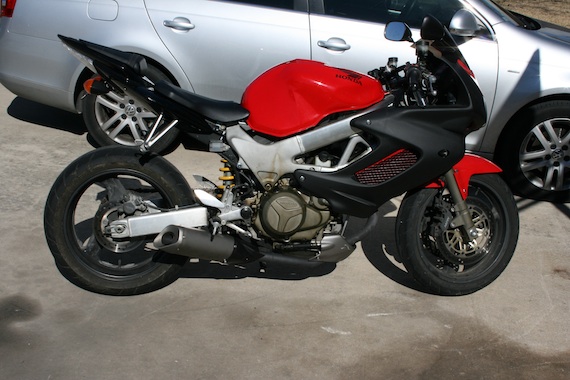

Well, its been in the 70's all week so I figured that I would tie up some loose ends on the bike. I put all of the wires where they need to go, changed the exhaust, mounted the license plate and turn signals and put the right bolts in the lower subframe. Still have a lot to do, but this took care of my cabin fever for now.

Just_Nick

It looks pretty cool, but for me I think that swapping a GSXR tail would be cooler. I like the look of the integrated turn signals on the GSXR.

Malice

I like it. I've been looking at a few different tails for my Hawk cuz the bulky look just isn't cutting it any more.
________
Lovely Wendie

smokinjoe73

Now what are you gonna do to the upper body to slim down? Looks like a steroid guy who never works out his legs.

Just_Nick

Maybe?

cliby

I like the look. the angle seems about perfect. if you have some pics from different perspectives be easier to give you better opinion.

Just_Nick

Here we go: R1 rear end. Mount it and hook the Undertail exhaust up as well for ultimate awesome factor.

Tweety

It's been done... Frankly I think I prefer the R6 option as then you can keep any good highmounts and make it look good...

Just_Nick

I know it's been done, I just think it looks better. The R6 tail is very skinny, which looks strange when compared to the rest of the bike.

smokinjoe73

Yeah, that R1 tail looks trick. I still think the RC51 bodywork is my choice for the SH. You can get the whole set (race) for like $400. Very stealthy.

Just_Nick

Did you also use the R6 subframe?

notquite

I Like it but as smokinjoe said, it looks a little front heavy. I think undertail cans would look sick. I am in the process of doin it to my hawk. with some custom fab for exhaust piping...words fail me for how sick it looks.

inderocker

IMHO, I think it's too angular for the bikes overall styling.

VTR steve

There you go

Just_Nick

Like I said, looks pretty good.

Bandit00085

I plan on running high mounts on it to fill in some of that gap, just not sure which ones I want. I did use the stock R6 subframe. They have a great integrated tail light for it that I plan on getting.

lip81

Can you still add the rear foot rests?

Just_Nick

The foot rests for the passenger bolt onto the subframe. You might need the R6/R1 footpegs if the spacing is different, but they will still bolt on no problem.

Bandit00085

Yeah I had the footrest. Just hadn't put them on when I took the picture. I posted some pics with them on.

swaptrex

how hard would it be to mount that so its fully functional? I'm looking for a new tail, but never thought about that route..

Bandit00085

I didn't think it was too hard. I had it roughed in in a couple of hours using a hacksaw and a few other basic hand tools. If you want some more details I can take some more pics and give you a better explanation but everything is fully functional. I just haven't got the r6 battery to put in it yet.
