My Cafe Build
01-14-2010, 10:55 AM
#301
Senior Member
Superstock
Join Date: Nov 2005
Location: Seattle, WA
Posts: 379
Hey man,
Really cool bike you are assembling and I am stoked that it is being built in the NW! I love everything except for the can and the tank and tail are genius. I have seen that technique performed on the tank before but not with excellent results.

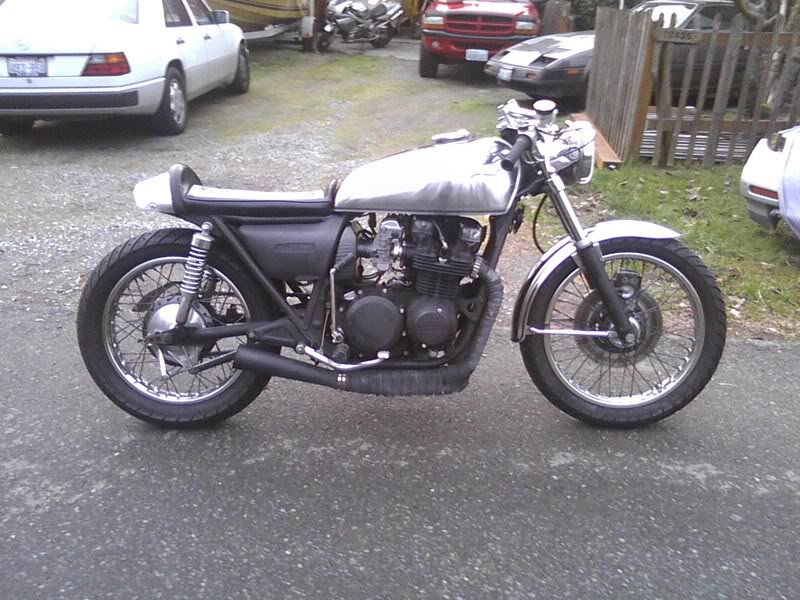

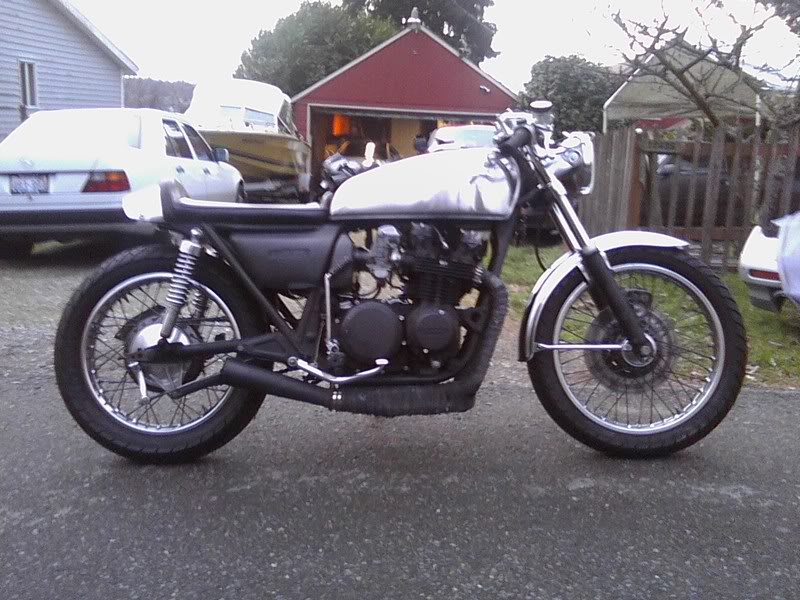

Here is a bike I built a few years ago that resides in seattle.
You can see the style of exhaust I like... Heh
Really cool bike you are assembling and I am stoked that it is being built in the NW! I love everything except for the can and the tank and tail are genius. I have seen that technique performed on the tank before but not with excellent results.
Here is a bike I built a few years ago that resides in seattle.
You can see the style of exhaust I like... Heh
01-14-2010, 12:26 PM
#302
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Nice looking bike there. I take it you no longer have it.
As far as the can is concerned, it is just about the easiest part for me to change my mind about and switch. I think once the whole bike is assembled and finished it wont look as goofy. JMHO for now. If things don't look right I am not against changing things.
So I ordered all my parts today. It hurt a little looking at the amount. I bought tires front and rear, a new chain, and four pod filters. Still I am on pace to keep the amount spent for everything bike included at $1100.
As far as the can is concerned, it is just about the easiest part for me to change my mind about and switch. I think once the whole bike is assembled and finished it wont look as goofy. JMHO for now. If things don't look right I am not against changing things.
So I ordered all my parts today. It hurt a little looking at the amount. I bought tires front and rear, a new chain, and four pod filters. Still I am on pace to keep the amount spent for everything bike included at $1100.
01-14-2010, 03:26 PM
#304
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
I bought Pirelli Sport Demon tires. They are the stickiest tire I could find that was still dot legal. Not alot of choices with the rim size. Speaking of tires, would you believe the rear tire was older than the bike. A true vintage tire, made in 1964 lol, I couldn't believe my eyes when I saw that today.
Also ordered myself some exhaust wrap. So other than fork seals the parts are done being bought.
Also ordered myself some exhaust wrap. So other than fork seals the parts are done being bought.
01-15-2010, 11:53 AM
#307
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

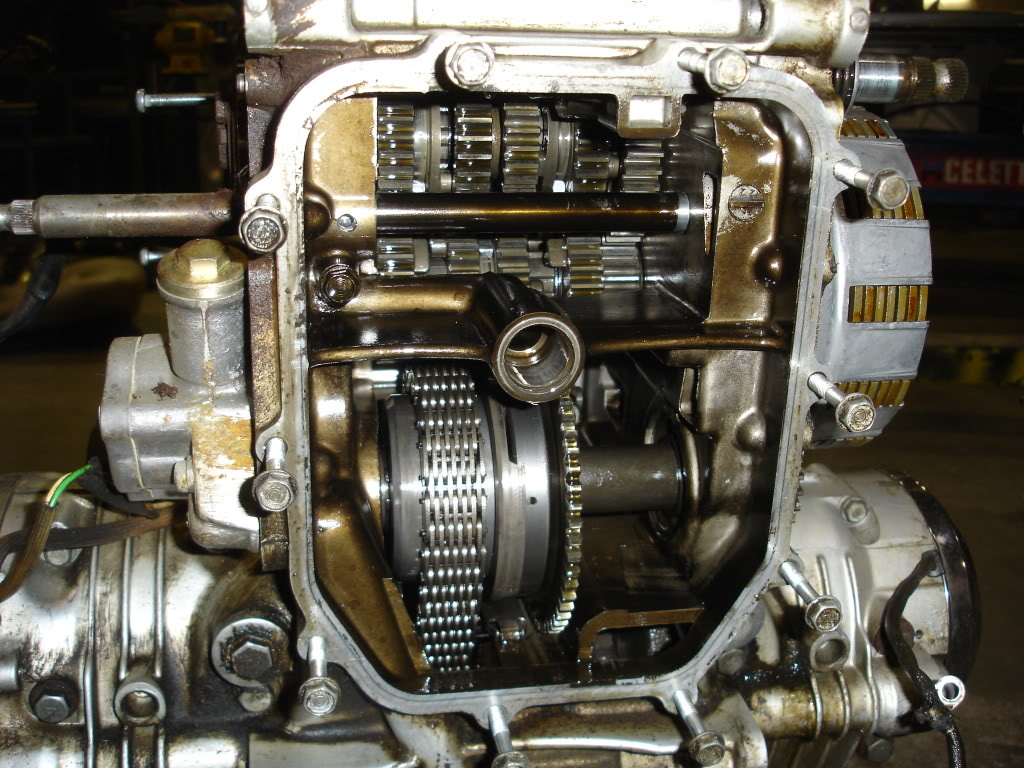

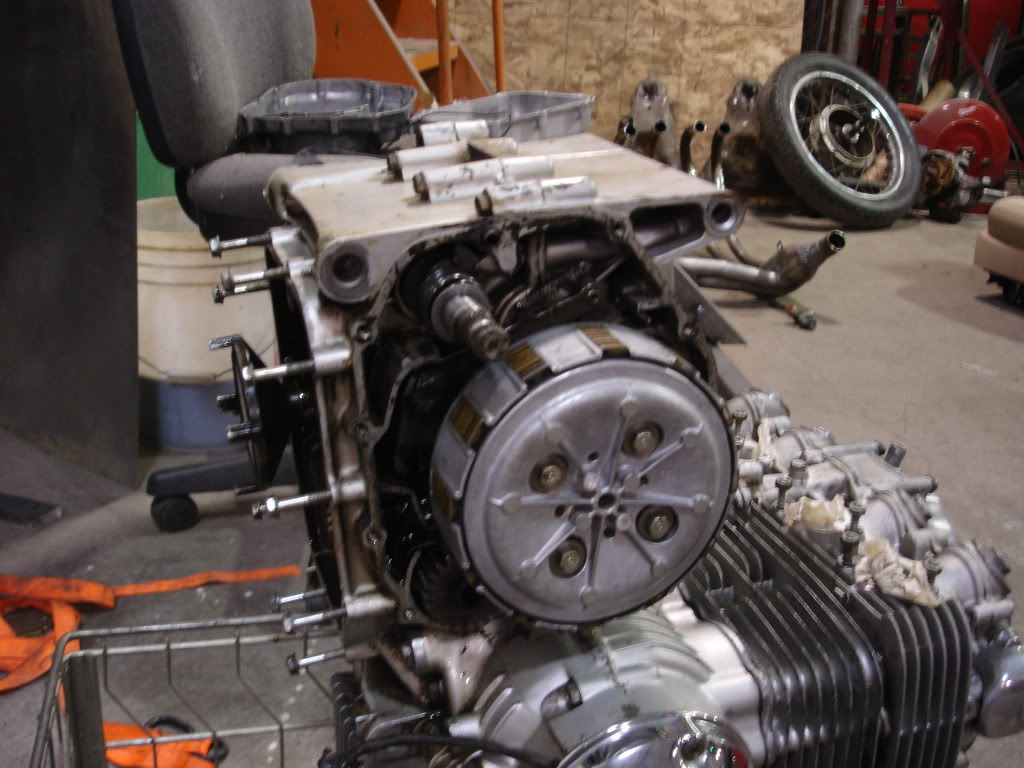

A thin layer of sludge, with some paper particles, like part of a paper gasket. Although truthfully the gasket for the clutch cover looked new and since the kick start seal was bad I have a feeling someone tried to replace the clutch cover gasket instead and was messy with getting the old one off. At any rate it looked like it had been sitting with the same oil in it for years.
01-15-2010, 03:16 PM
#309
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
.
01-15-2010, 03:19 PM
#310
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

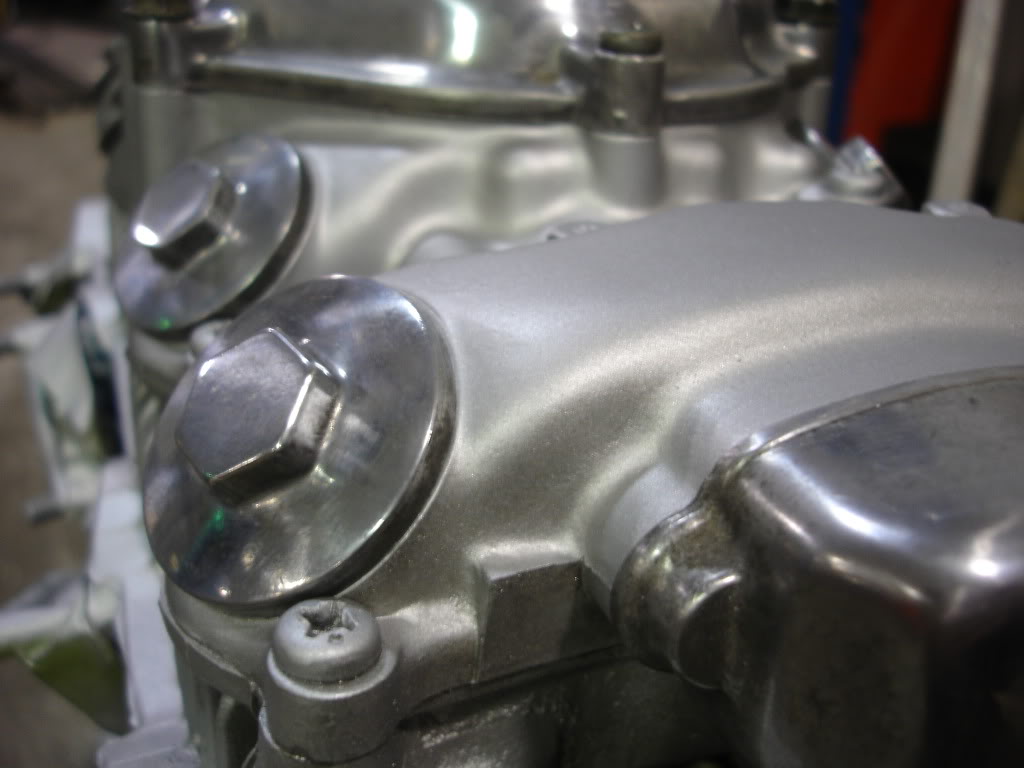

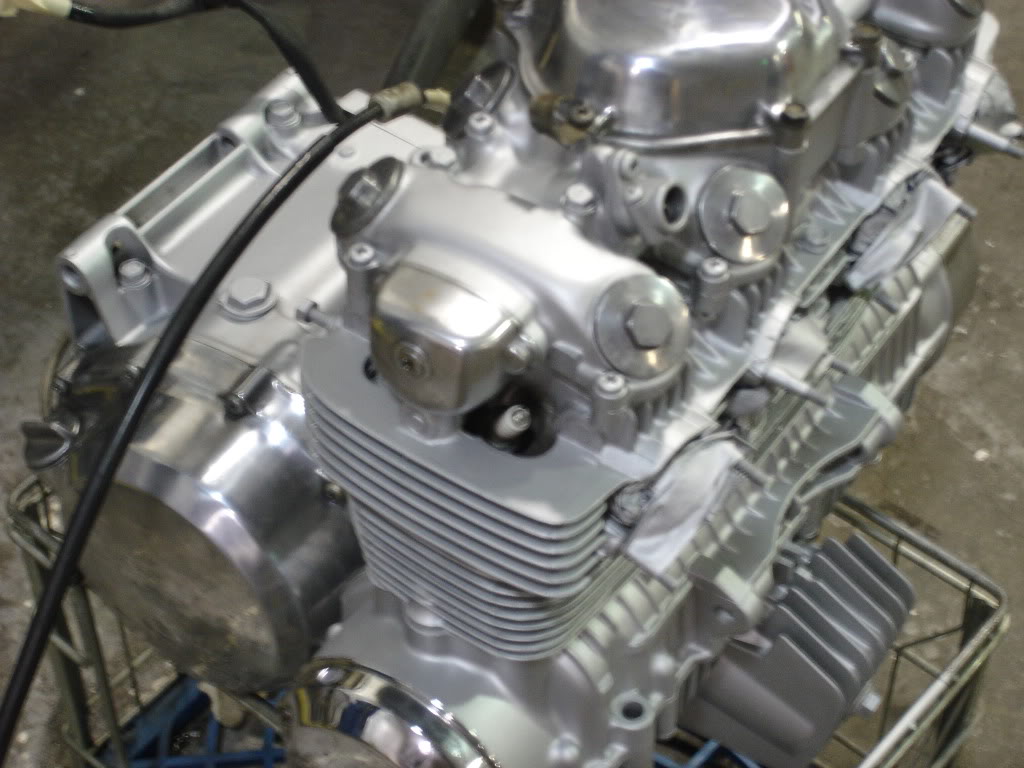

Engine painted!
Yep, its painted, and basically polished. I have the stator cover to polish then I need to hit all the shiny stuff with a good final metal polish and that is a wrap. The pictures say it all IMO.
01-16-2010, 11:56 PM
#312
Senior Member
Superstock
Join Date: Nov 2005
Location: Seattle, WA
Posts: 379
01-18-2010, 09:17 AM
#314
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
I will ask about the paint again today. You should stop by in a week or two, by then I should have it 90% or better reassembled. Considering I still need to paint the rear rim, then have the tires mounted. Also need to service the forks. Those are the more major things to accomplish.
I was pleasantly surprised on saturday when I went to the dealer, not only did they have my fork seals in stock but they also had the kick start seal! That saved me some time since now I don't need to wait a week or more.
I pulled the starter out and sealed off the opening. No reason for me to have it there since I dont have the wiring, the switch, or the solenoid installed. I figure it dropped about another 5 pounds off of the bike. I will have to bring two scales in and weigh this thing dry, I am curious as to the actual amount of weight reduction.
I was pleasantly surprised on saturday when I went to the dealer, not only did they have my fork seals in stock but they also had the kick start seal! That saved me some time since now I don't need to wait a week or more.
I pulled the starter out and sealed off the opening. No reason for me to have it there since I dont have the wiring, the switch, or the solenoid installed. I figure it dropped about another 5 pounds off of the bike. I will have to bring two scales in and weigh this thing dry, I am curious as to the actual amount of weight reduction.
01-18-2010, 05:00 PM
#315
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

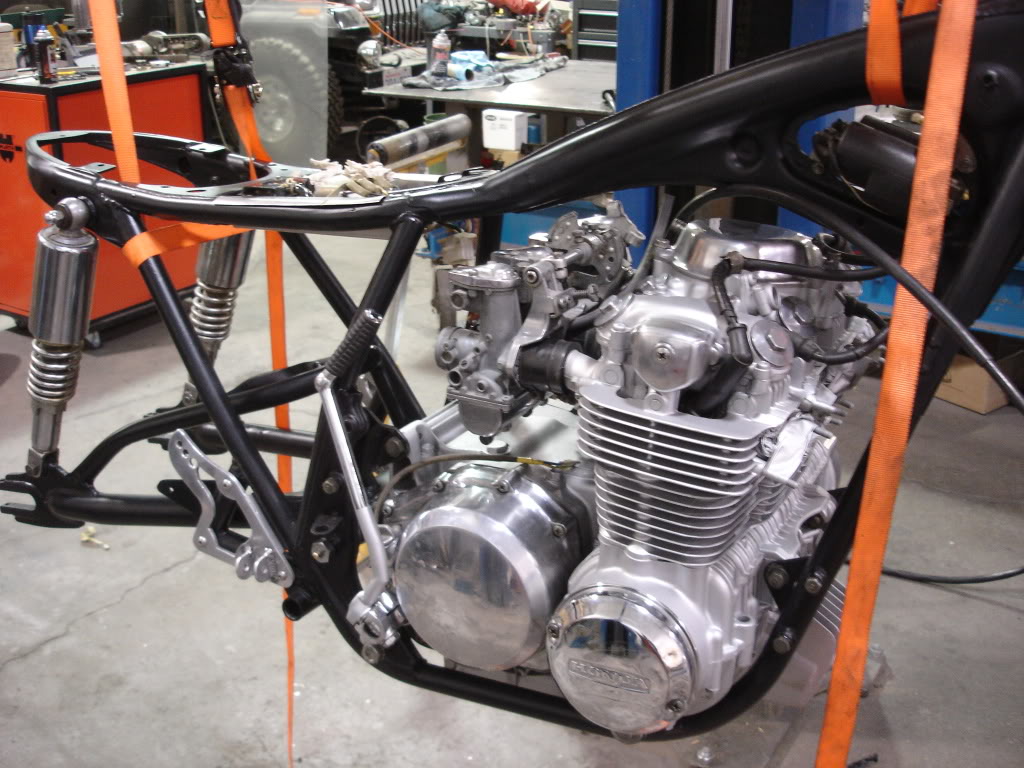

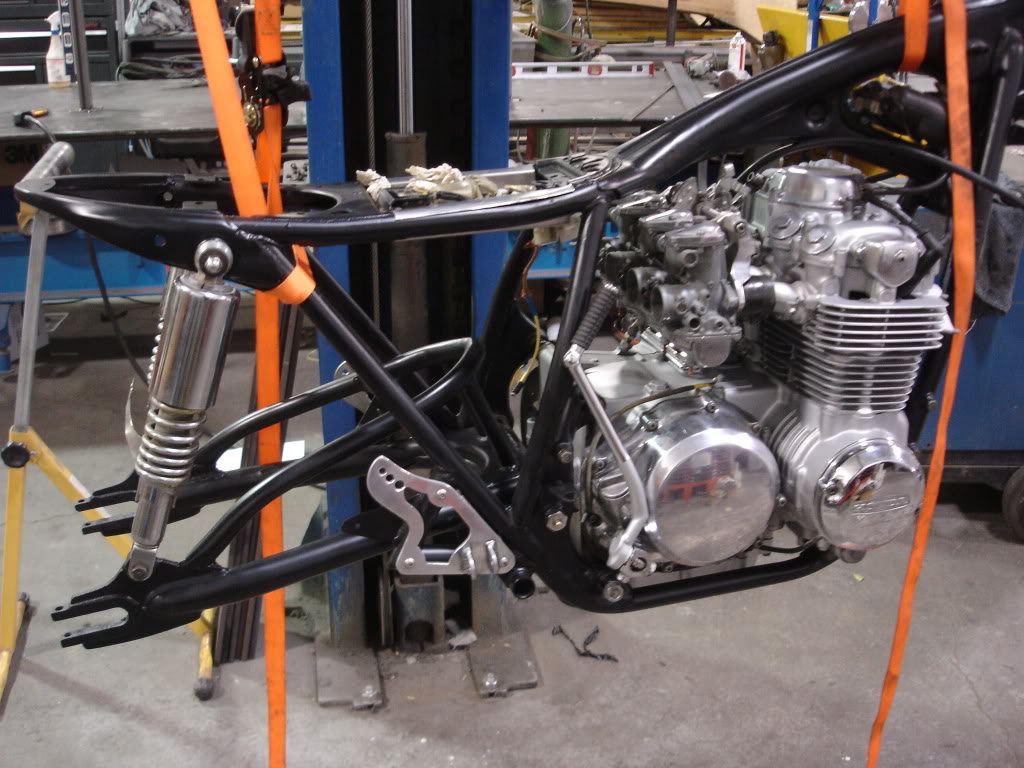

So today I was able to paint the rear rim, and also I was able to install the motor, the swing arm and the lower triple tree. I don't have any pics from today though.
01-18-2010, 08:29 PM
#317
Senior Member
MotoGP
Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
Keep this worked up CNP. I think you have something that is inspiring in your recent project. It's a great work and it's worth moving forward - a fine example to others. It's also worth completing. Move ahead and Godspeed.
01-19-2010, 01:02 PM
#321
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
So good news, the tank and cowl are now primered up, the guy painting it says he should have the pearl white on it this week. When he does I will try and get a shot for everyone before the stripe goes on.
01-19-2010, 03:33 PM
#323
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

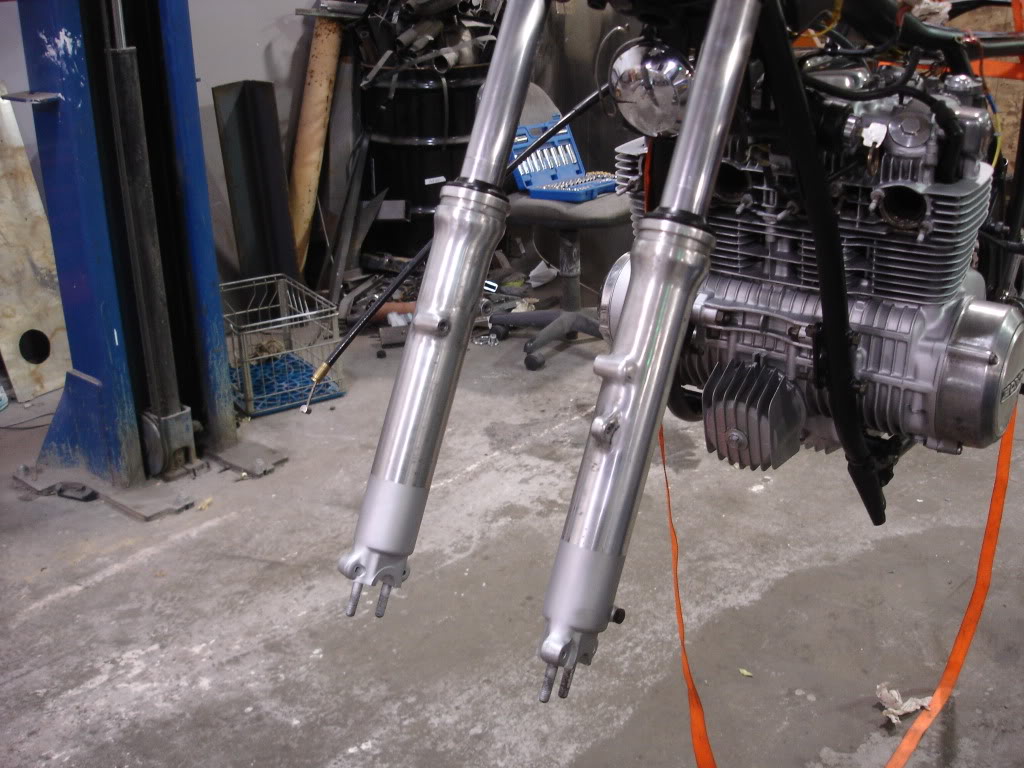

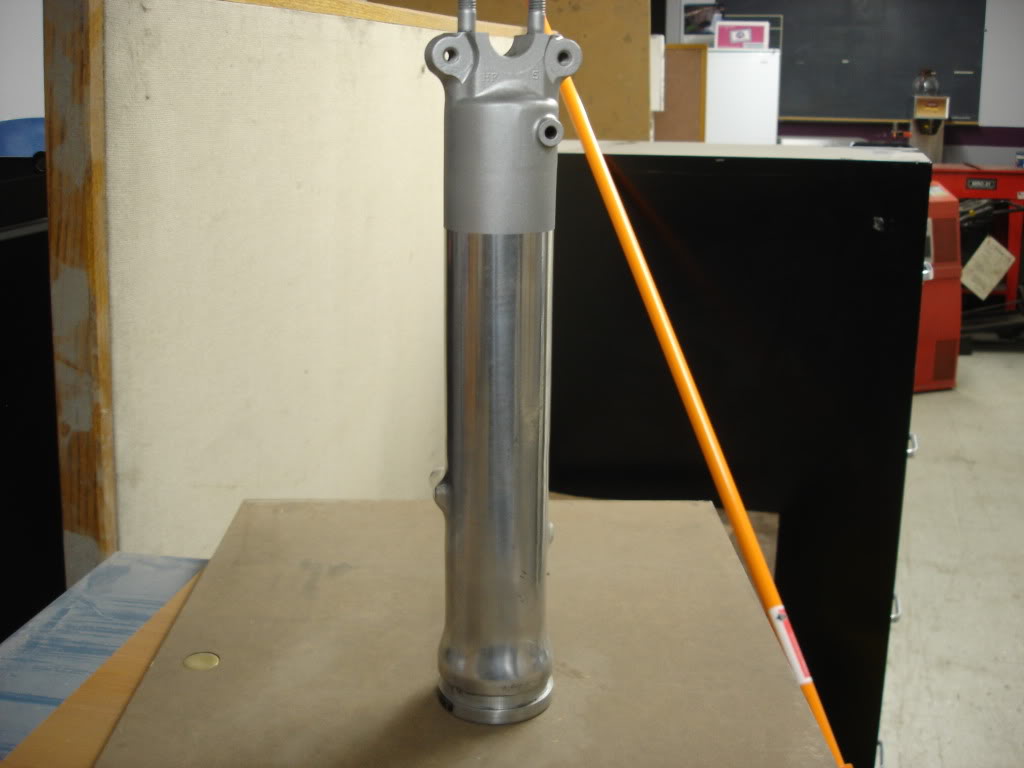

Started taking the forks apart, eyuck it was bad looking oil. Looked like it had separated. Anyways I polished the fork end and painted the tip. Heres what it looks like.
01-20-2010, 11:20 AM
#324
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

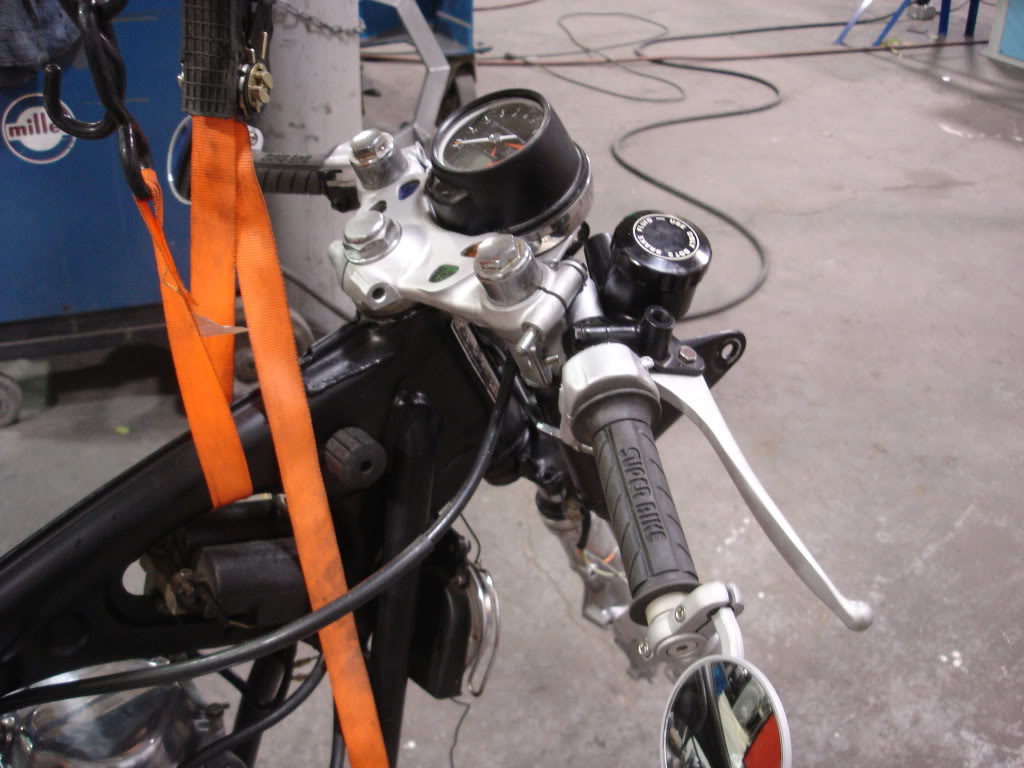

Well both forks have been serviced with new oil and seals. Later I will put the headlight brackets and clip on's on and its beginning to look like a motorcycle. Bring on the tires!
01-20-2010, 04:25 PM
#328
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
They where on ebay, pretty cheap like $20, the mirror assembly is great for the price, the mounting bits are cheap though. We shall see if they hold well. I have heard mixed reports. My work buddy has them on his hurricane and they seem to be fine were as hawkrider couldn't get them tight enough.
Last edited by Little_Horse; 01-21-2010 at 09:54 AM.
01-21-2010, 10:00 AM
#329
2nd mouse gets the cheese
SuperBike
Thread Starter
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697

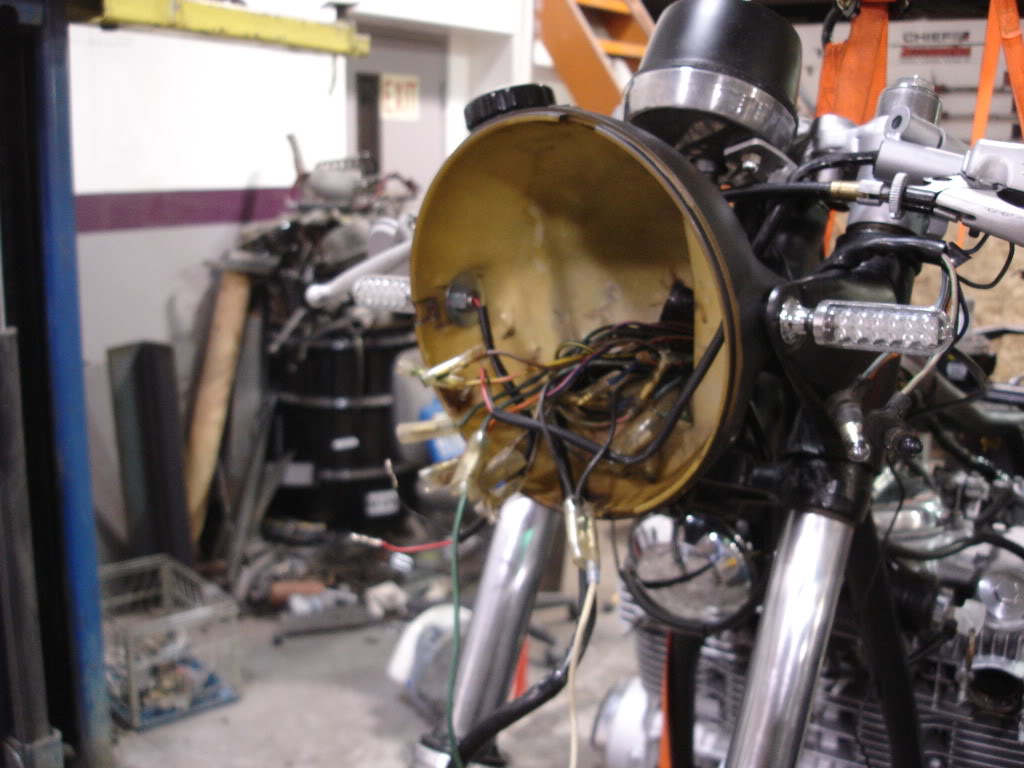

Electrical
Yep, gotta sort the electrical now. Its a little bit of a project considering I dropped a whole switch assembly that used to be the throttle assembly. See I shortened the throttle holder so it would fit on my bars, this got ride of the hi low headlight switch the kill switch and the starter button. So now I have to bypass all that stuff, so the headlight will skip the switch and the kill switch needs to be bypassed too.

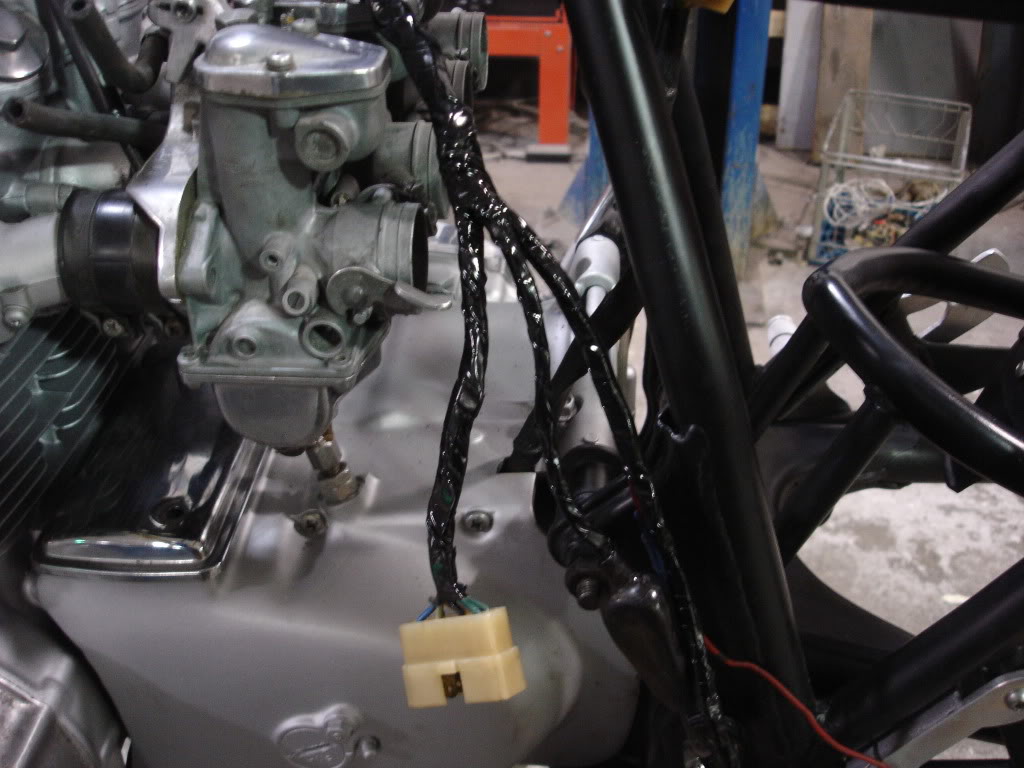

I also am having to make battery hook ups since the battery is all the way in the cowl. So I made a new frame grounding point and new positive lead that will get hardwired into the original harness. The trick with everything is to not see it, still working on that but I don't think I should have trouble accomplishing that.
I also am having to make battery hook ups since the battery is all the way in the cowl. So I made a new frame grounding point and new positive lead that will get hardwired into the original harness. The trick with everything is to not see it, still working on that but I don't think I should have trouble accomplishing that.
