Shopping Cart Rear Stand Build

Welp I thought I'd snap some pictures of my ghetto rear stand made from, you guessed it, a shopping cart. This bike stand cost a grand total of $5, which is what I paid some lady who had a shopping cart on the side of her house. Also, it kept me in the garage this weekend rather than out at the bars, so I didn't spend my whole check, which means I can afford tires! It's a win win!

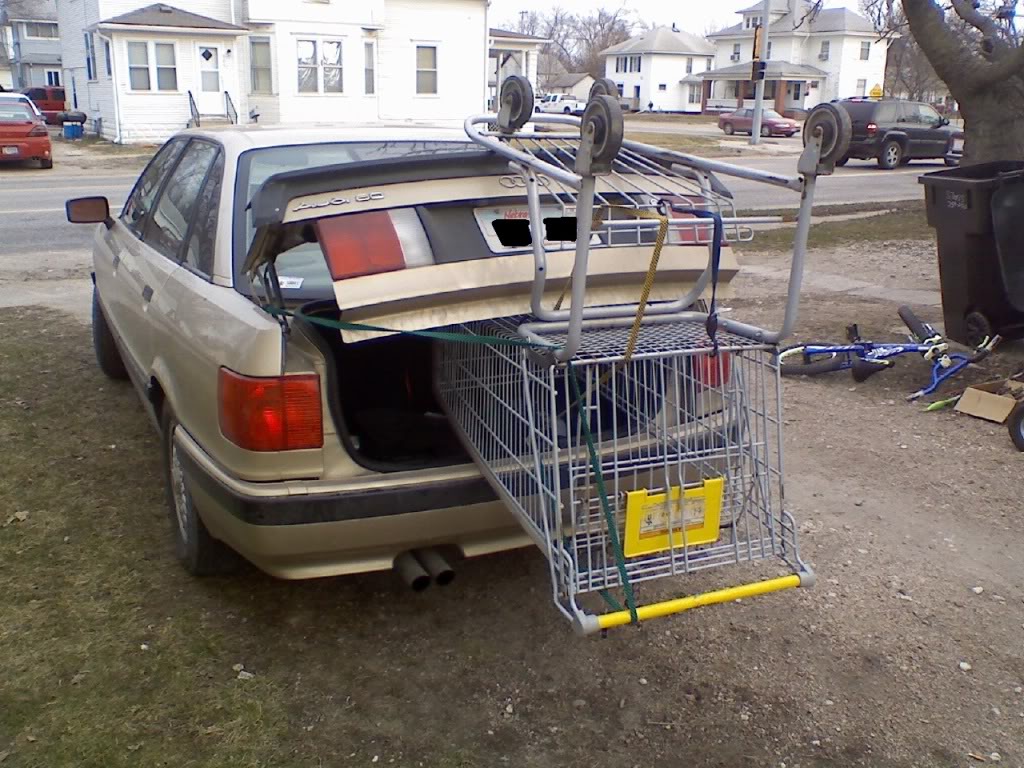

Here is said cart when I... acquired it... this afternoon.
Name:  0326001827-1.jpg
Views: 114
Size:  173.0 KB
Name:  0326001827a-1.jpg
Views: 72
Size:  167.4 KB

Cut all this off with the sawzall
Name:  0326002037.jpg
Views: 231
Size:  132.6 KB

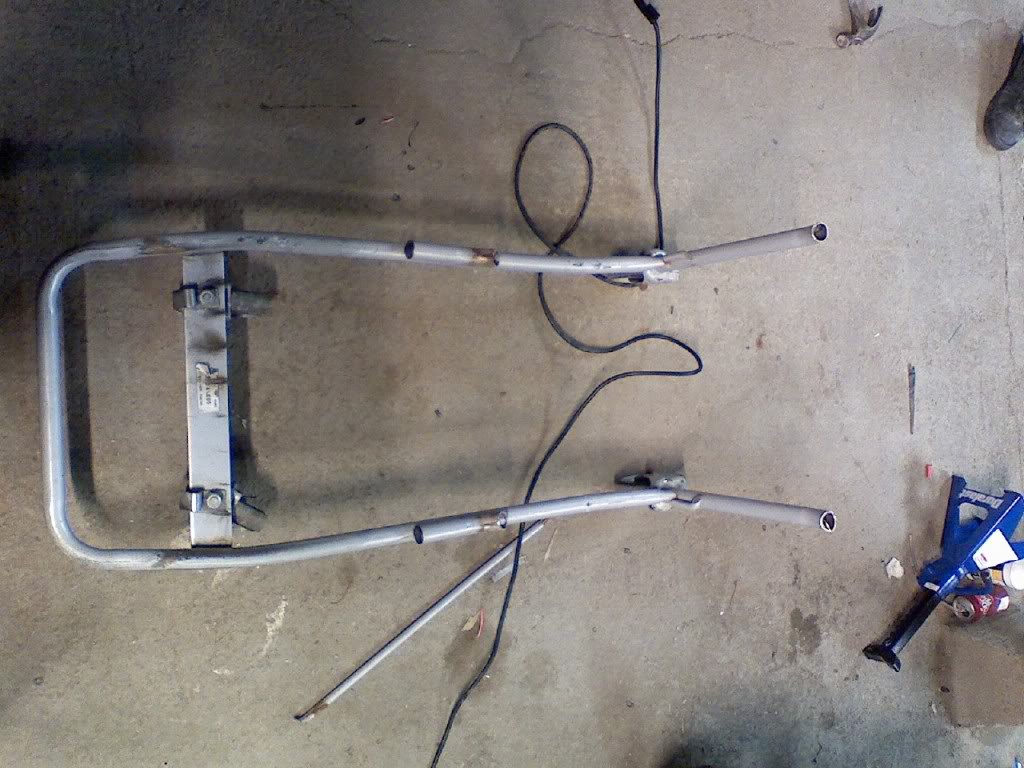

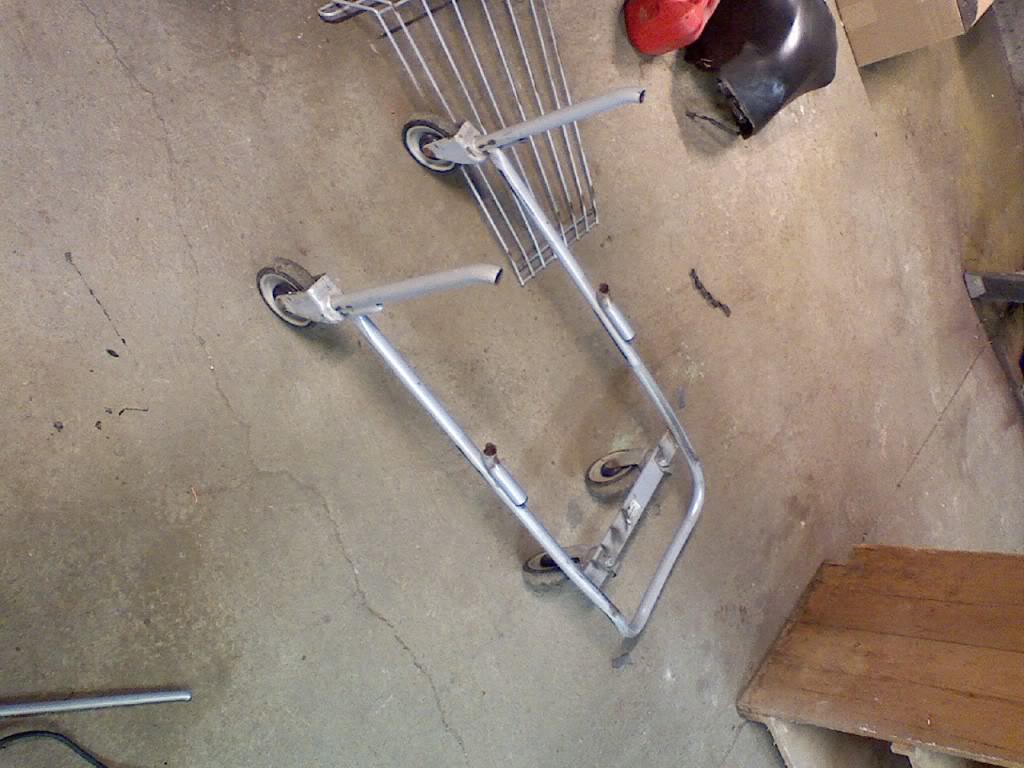

which left this:
Name:  0326002038.jpg
Views: 64
Size:  124.8 KB
Name:  0326002050.jpg
Views: 77
Size:  124.2 KB

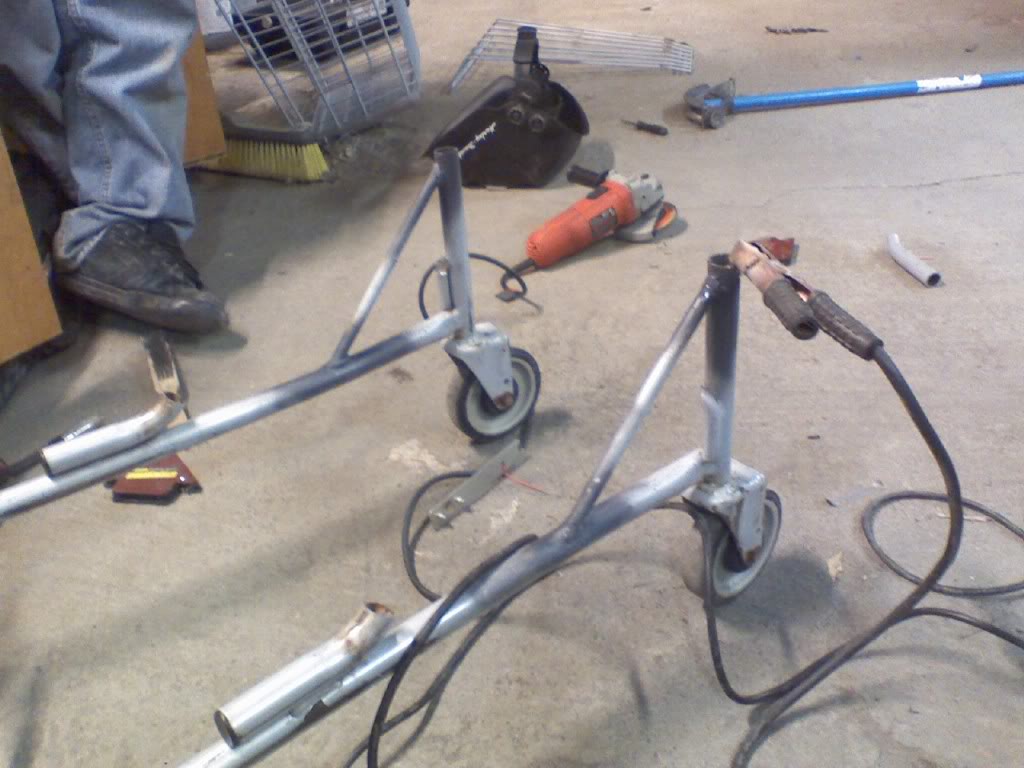

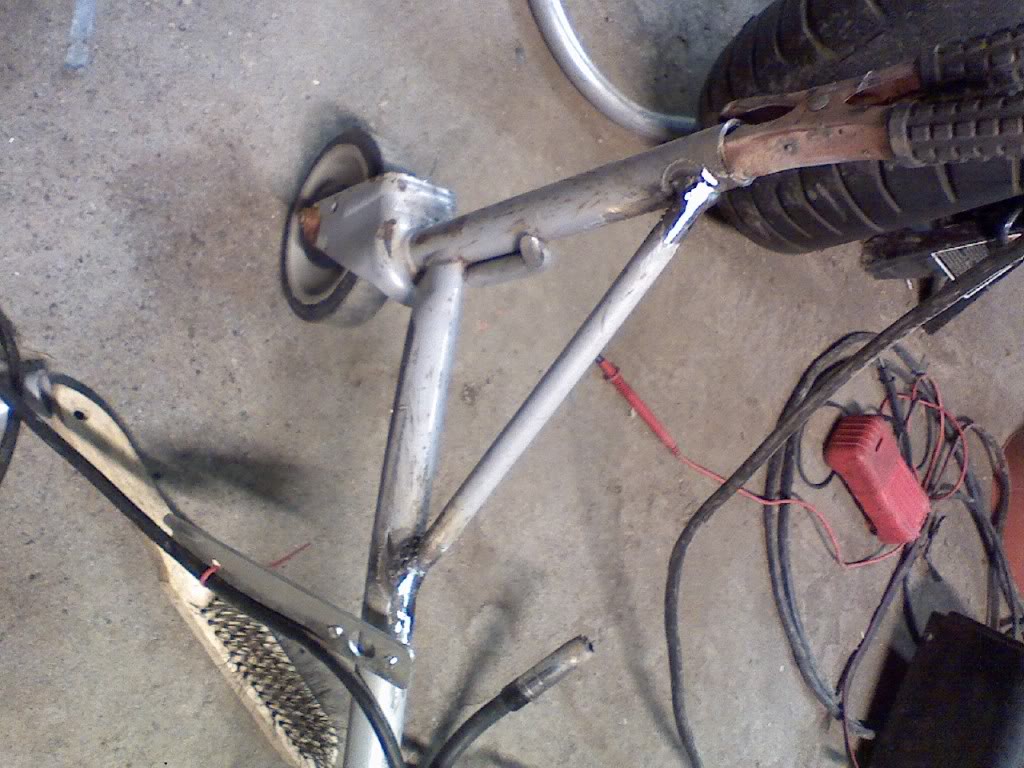

Welded on a couple supports.
Name:  0326002125.jpg
Views: 73
Size:  136.6 KB
Name:  0326002152.jpg
Views: 68
Size:  92.5 KB

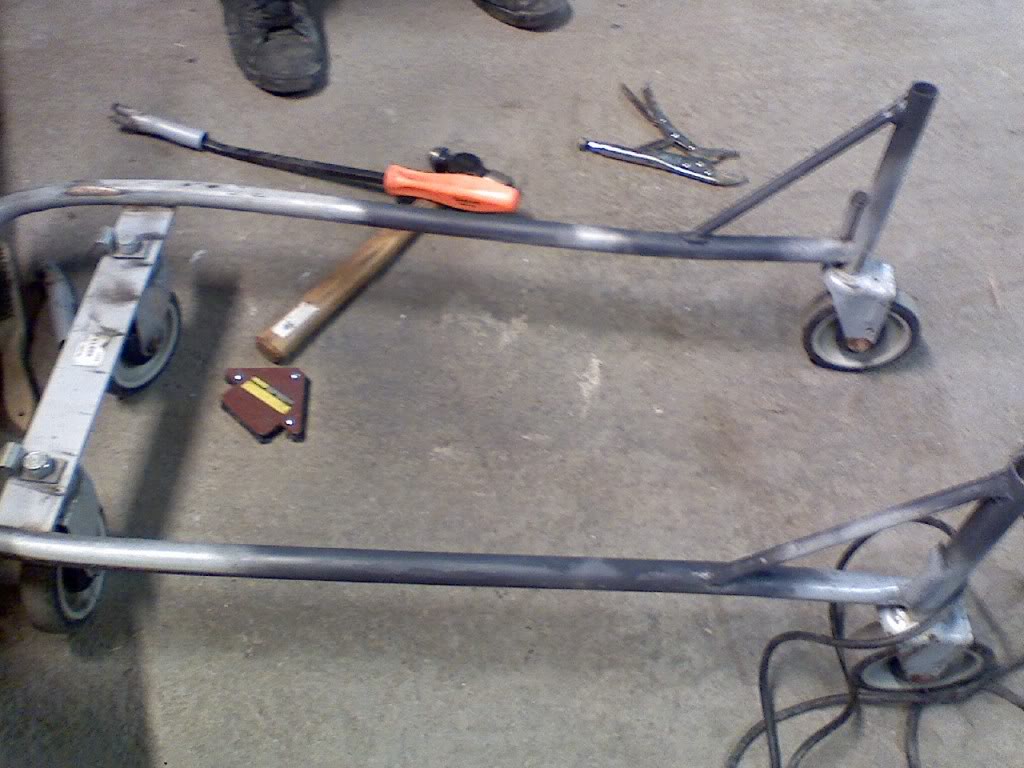

Ground off the leftover bars and hit it with a little primer.
Name:  0326002204.jpg
Views: 71
Size:  113.3 KB

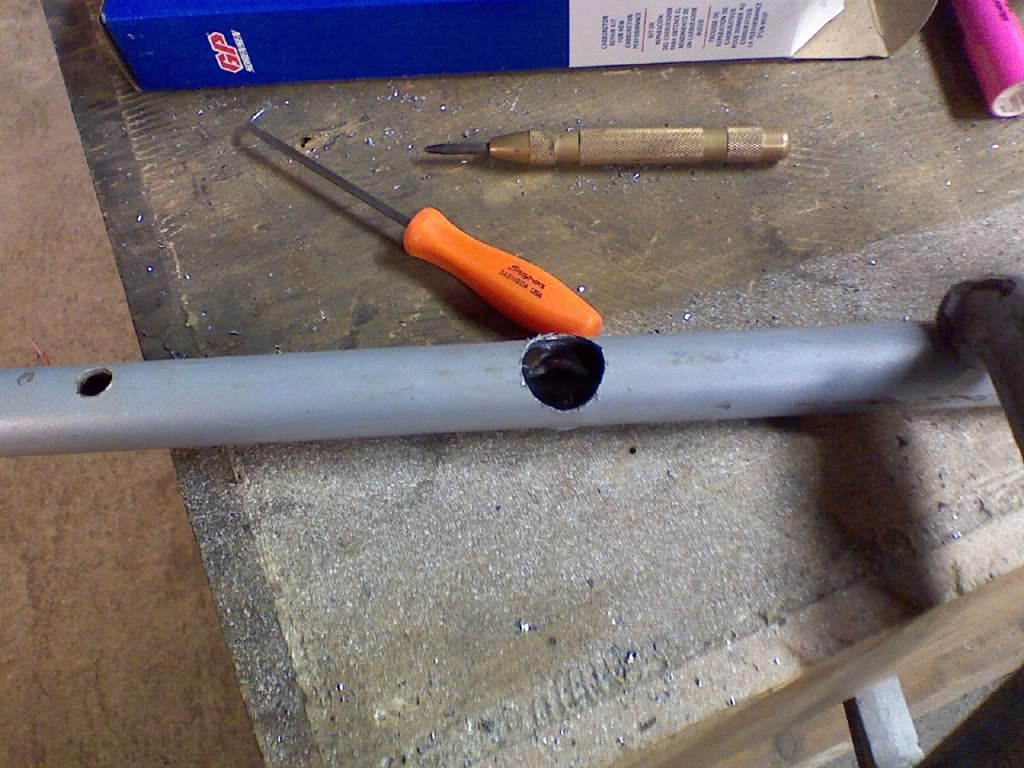

Cutting the pegs with a hole saw.
Name:  0326002245.jpg
Views: 66
Size:  153.1 KB

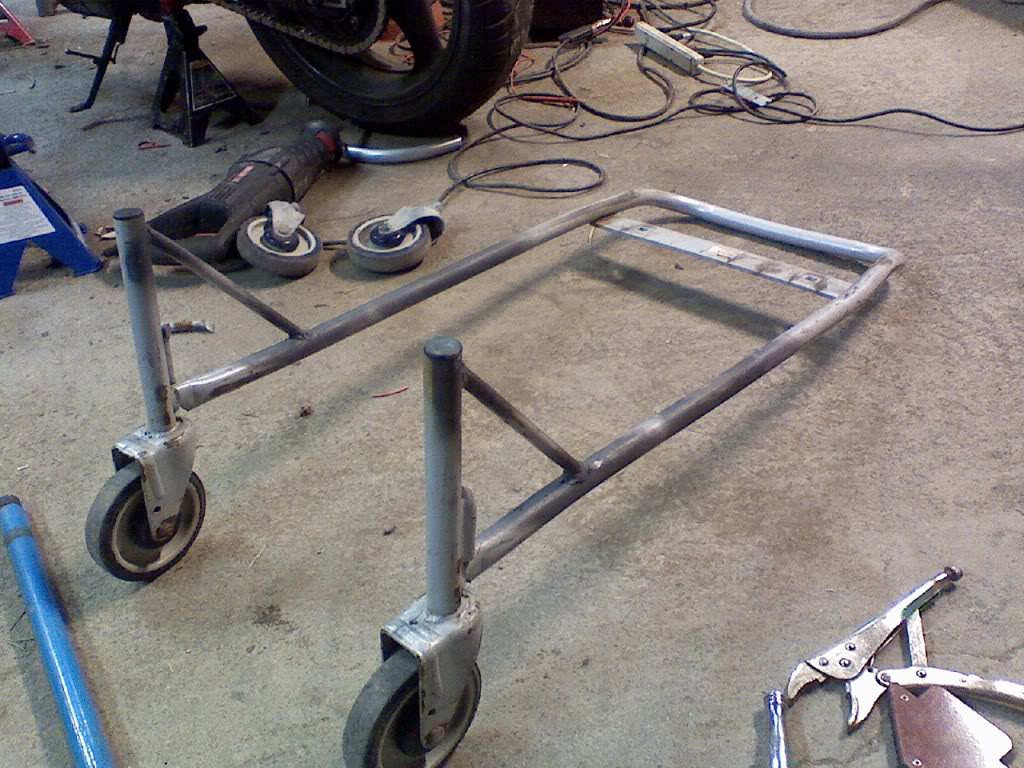

So here's how it sits right now, to be honest I thought this would kind of be a joke but it's thicker wall tubing than I thought, it all feels very sturdy, and I will have TONS of leverage. I can also take the front casters off if necessary.
Name:  0326002247.jpg
Views: 94
Size:  73.8 KB
Name:  0326002248.jpg
Views: 83
Size:  171.8 KB

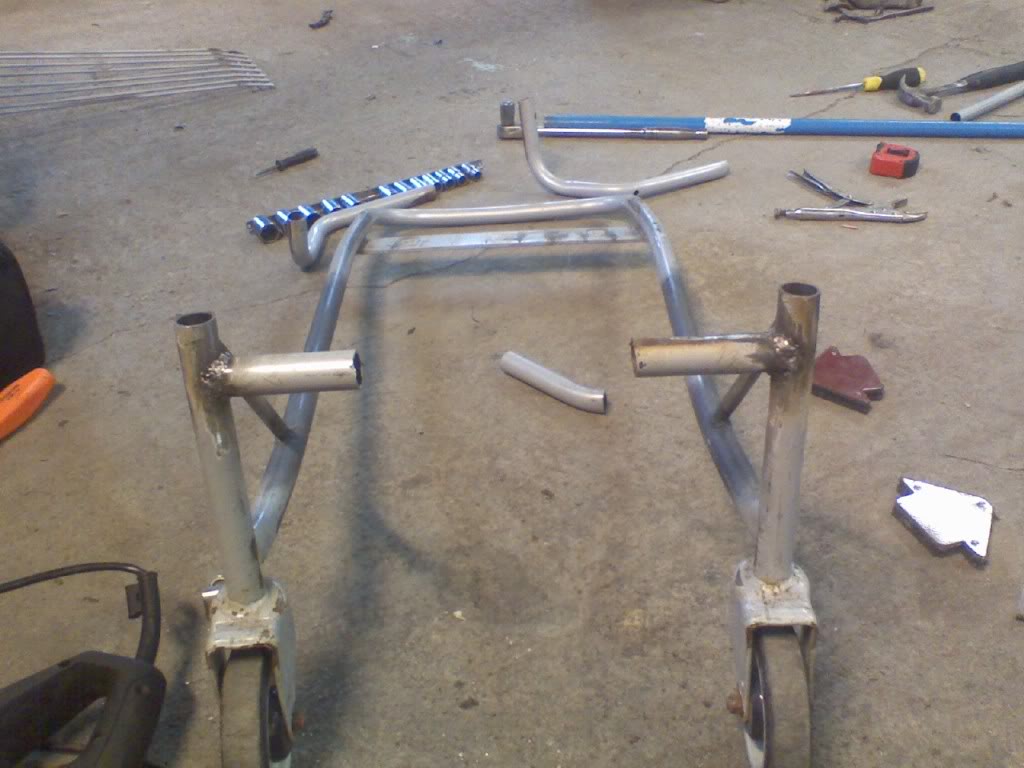

Welded on some pegs
Name:  0327001659.jpg
Views: 67
Size:  88.2 KB
Cut them down to size and sprayed a little flat black on my new paint stand... BONUS
Name:  0327001722.jpg
Views: 99
Size:  123.9 KB

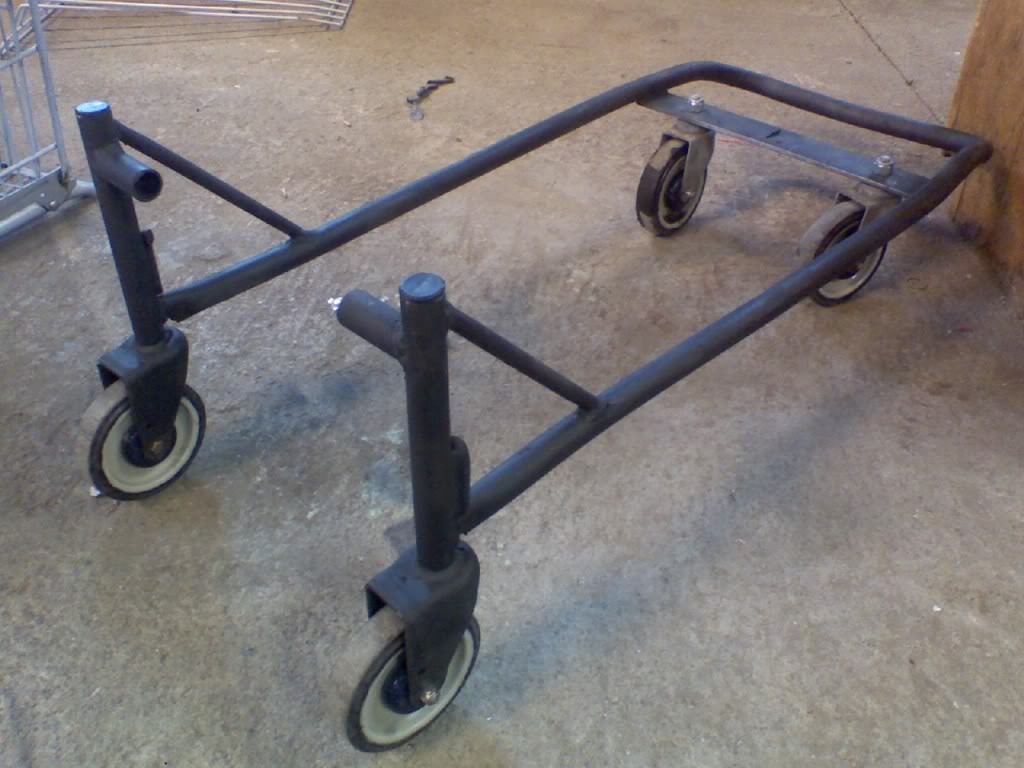

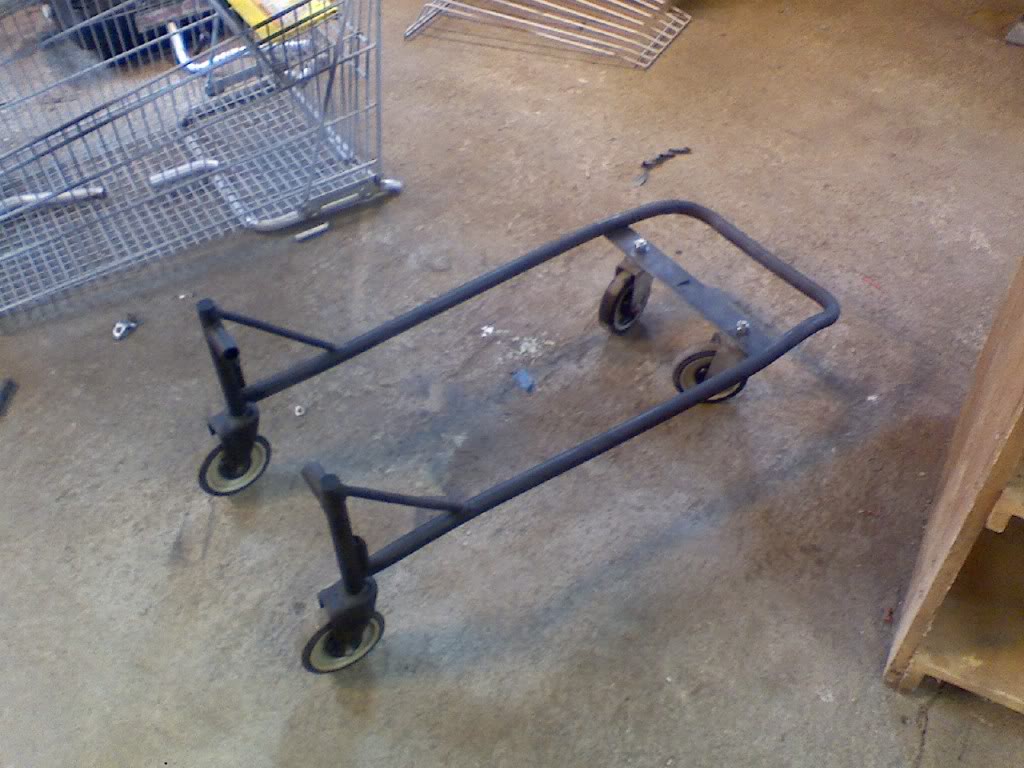

Greased up the wheels and she was good to go
Name:  0327001751.jpg
Views: 66
Size:  92.8 KB
Name:  0327001756.jpg
Views: 78
Size:  117.3 KB
I just wrapped the pegs in a bunch of electrical tape, we'll see how that holds up, but it's easily replaced.

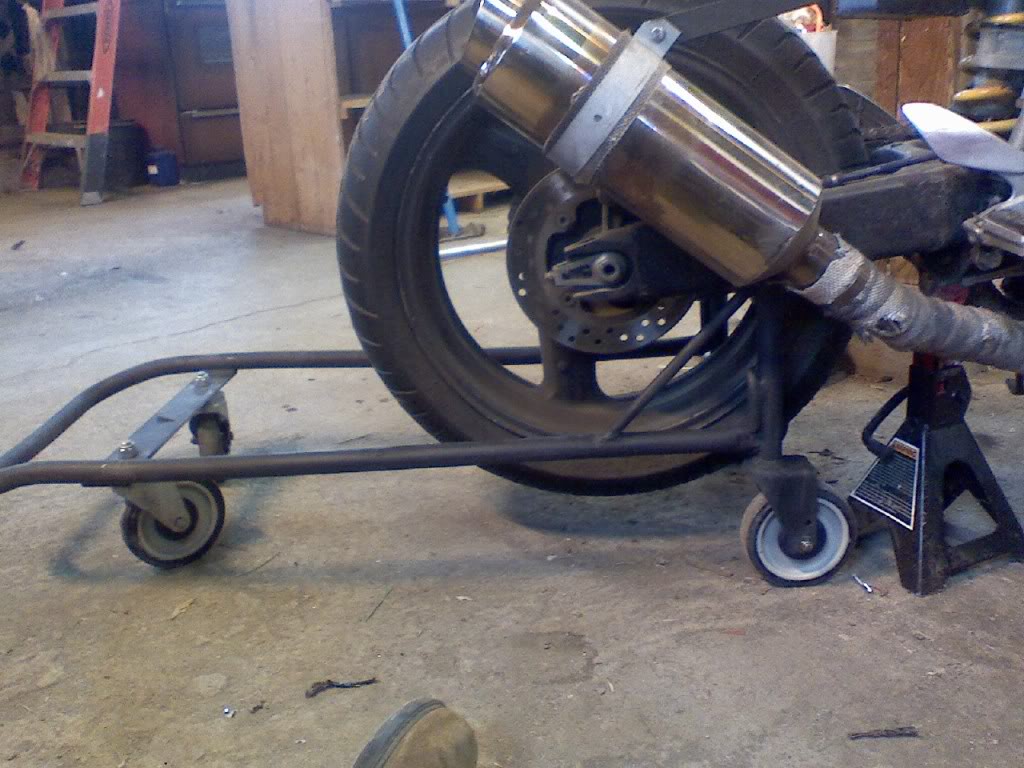

So it works really well. Plenty of leverage so it's much easier than a standard small one, and it makes the bike very mobile when it's up.

And of course if I want it's very easy to pop out the front two casters.
Name:  0327001802a.jpg
Views: 77
Size:  118.2 KB
Name:  0327001802b.jpg
Views: 73
Size:  103.0 KB
Name:  0327001803.jpg
Views: 76
Size:  126.1 KB

Thoughts? Comments? And yes, I realize it's very ghetto, so we can just move past those comments...
Old 03-28-2010 | 01:18 PM
  #2
physician's Avatar
Junior Member
Squid

Joined: Jun 2009
Posts: 19
physician is on a distinguished road
well, i'll rather said, it's verry creative!
well done!
Old 03-28-2010 | 01:34 PM
  #3
Ghostrider_pa's Avatar
Junior Member
Squid

Joined: Mar 2010
Posts: 21
From: Philadelphia, Pa
Ghostrider_pa is on a distinguished road
I also have to say very creative
Old 03-28-2010 | 01:54 PM
  #4
PUSHrod's Avatar
Senior Member
SuperSport

Joined: May 2008
Posts: 530
From: Central Fl.
PUSHrod is on a distinguished road
It occurs to me that...

After forehead slaps there will be a run on shopping center carts.
A wide footprint dolly under the front and yer mobile in the garage.
The basket, placed on wall hooks would be great storage for clumsy, large, lightweight stuff.
And someone surfing this site is going to draw up formal plans for the soon to come
manufactured version.

With security cameras everywhere, there's even the thrill of getting busted. "Well, officer, ya see, I just lost my home and now I need something to carry my stuff around in."
Old 03-28-2010 | 02:02 PM
  #5
physician's Avatar
Junior Member
Squid

Joined: Jun 2009
Posts: 19
physician is on a distinguished road
ahah with the basket, you can make a new custom grill for your pick up!
or use it to cook hot dogs over a steel barrel bbq..;D
Old 03-28-2010 | 02:49 PM
  #6
AngryOlaf's Avatar
Senior Member
Superstock

Joined: Sep 2009
Posts: 421
From: Woodland Hills, CA
AngryOlaf is on a distinguished road
Yet another senseless and avoidable case of shopping cart abuse.
http://www.shoppingcartabuse.com/
Old 03-28-2010 | 04:05 PM
  #7
socalmike's Avatar
Member
Squid

Joined: Oct 2009
Posts: 51
From: Menifee, CA
socalmike is on a distinguished road
Unauthorized Use Constitutes Theft.

~mike
Old 03-28-2010 | 08:18 PM
  #8
nath981's Avatar
Senior Member
MotoGP

Joined: Aug 2006
Posts: 2,934
From: altoona, pa
nath981 is on a distinguished road
muggin a homeless man for his only means of transportation is about as low as you can go. You have finally reached the bottom. Good job!
Old 03-28-2010 | 09:37 PM
  #9
spladle160's Avatar
Senior Member
Superstock

Joined: Aug 2009
Posts: 380
From: Warrenton Virginia
spladle160 is on a distinguished road
looks good. It kinda looks like it would flip forward pretty easily since all your weight is just barely past 90 degrees above you pivot. If it turns out to be a problem it seems like a good excuse for model 2.0
Old 03-28-2010 | 10:39 PM
  #10
maverick's Avatar
Thread Starter
Senior Member
Superstock

Joined: Feb 2009
Posts: 342
From: Nebraska
maverick is on a distinguished road
well I thought about that, it really seems like it will be alright, it seems stable, but if need be I would just take off the front two casters and that would angle it down further.
Old 03-28-2010 | 11:17 PM
  #11
trackdayhawk's Avatar
medium fast guy
Back Marker

Joined: May 2008
Posts: 212
From: western MI, rust & pot hole capital of the world
trackdayhawk is on a distinguished road
Outstanding!
