Rear undertail
09-13-2008 | 04:02 PM
#1
Thread Starter
Senior Member
Back Marker
Joined: May 2008
Posts: 204
From: Garden Grove, Ca.
Rear undertail
Okay, I have about reached my limit of looking at the big piece of **** plastic over the back tire. How do you remove it and what can you replace it with to still hold the plate/light?
09-13-2008 | 08:54 PM
#4
Senior Member
MotoGP
Joined: May 2008
Posts: 3,451
From: San Clemente, CA
I cut mine down to 4" below the reflector, the height of the license plate, using a Dremel. But you could also scribe a line with a straight edge and use a utility knife to score along the line until it breaks off. I ditched the ugly license plate light then cut out an opening in the bottom of the taillight and glued a piece of translucent white plastic over the opening. It looks great, and it's legal.
Having said that, I saw a GSXr this evening while my wife and I were out for a short ride, and he had the rear fender completely removed with the license plate way under at the front of the rear wheel. I've seen this many times before, but not with a strip of BLUE LEDs about 1 foot long running up the center of the undertail. That is a guaranteed pull over here in CA.
Having said that, I saw a GSXr this evening while my wife and I were out for a short ride, and he had the rear fender completely removed with the license plate way under at the front of the rear wheel. I've seen this many times before, but not with a strip of BLUE LEDs about 1 foot long running up the center of the undertail. That is a guaranteed pull over here in CA.
09-19-2008 | 08:59 AM
#5
1Liter Rider
Squid
Joined: Jul 2008
Posts: 39
From: Glenbeulah Wisc.
If you replace it..I want the old one..
I would like to get the old plastic fender if you take it out.....
email me at 996rider@live.com
email me at 996rider@live.com
09-19-2008 | 12:40 PM
#6
Senior Member
Back Marker
Joined: Jun 2008
Posts: 185
From: Northern CA
I've got a Mototeck undertail for sale if you want it. PM me.
The link shows what the undertail looks like installed if you haven't seen it already.
https://www.superhawkforum.com/forum...ad.php?t=12844
The link shows what the undertail looks like installed if you haven't seen it already.
https://www.superhawkforum.com/forum...ad.php?t=12844
Last edited by Scoutpilot; 09-19-2008 at 12:43 PM.
09-19-2008 | 12:48 PM
#7
Out of my mind, back in 5
MotoGP
Joined: Nov 2006
Posts: 6,109
From: Skurup, Sweden
I would like to get the old plastic fender if you take it out.....
email me at 996rider@live.com
email me at 996rider@live.com
09-19-2008 | 12:55 PM
#8
Senior Member
Back Marker
Joined: Jul 2006
Posts: 223
From: Las Vegas, NV
If you use the plate as a template it looks really good. Just place it as high up on the flat part as you can go and then draw a line with a grease pencil etc... and then shape the sides how you want them I did mine with curved corners and then level with the ground.
Dennis
Dennis
09-19-2008 | 12:55 PM
#9
Senior Member
Back Marker
Joined: Jul 2008
Posts: 214
From: Palmyra, Va
I took my dremell, and cut it off about an inch or so below the lock and drilled new holes for the tag. Then I took my dremell and cut a section out of the bottom side of the tail light and epoxied a clear piece of plastic in place to make a tag light.
I purchased turn signals off ebay that bolted to the tag
I purchased turn signals off ebay that bolted to the tag
09-20-2008 | 08:38 PM
#11
Member
Squid
Joined: Sep 2008
Posts: 75
From: Killeen, Fort Hood

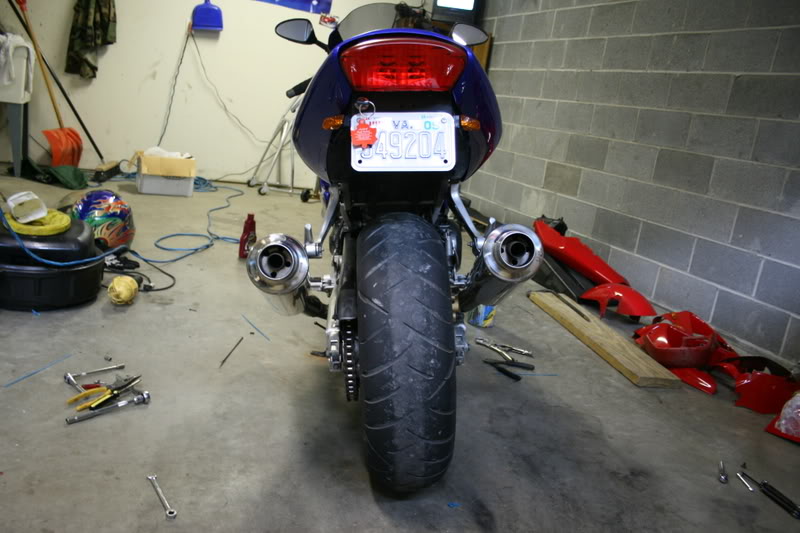

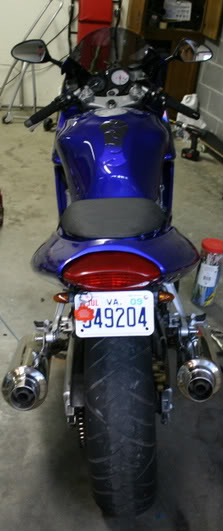

go to airtech or shark skinz and buy either the rc51 or the cbr race tail for it. then put LED brake and turn signals on it, mount your plate flat up under it and it cuts out that ugly tail light section. here is a pic of my cbr, you can see the tail i am running on it.
