Old 05-27-2010, 09:31 PM   #1
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Factorypro 4 degree ignition advancer

I picked up a "wreck" that supposedly has the Factorypro 4 degree ignition advancer installed. Based on my experiences with POs, I want to ensure that it was installed properly. Can one of you please give me the basics on this installation? Where does it go, how does it get there, what stock part does it replace if any?

This is our summer project, $1,100 with a brand new Ohlins on it, I figured that it was a pretty good deal. Thank you.

JB
__________________
2005 Super Hawk: Staintunes Exhausts, Ohlins Shock +1.0mm spacer, Racetech Fork Springs, Coerce Fork Brace, Helibars, F4i Ft Calipers and MC with EBC/HH Pads Ft & Rr, Galfer SS Brake & Clutch Lines, AllBalls Wheel / Stem Bearings, APEs, TPS mod, dePAIRed, BMC Filter, Factory 1.1 Jet Kit, T-Rex Sliders, Sargent Seat, Dunlop Q2s, Eastern Beaver Headlight Relays with PIAA Lamps, Puig Hugger and Touring Screen, DID X-ring +2 Rear, R1-RR. More to Come...
residentg is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 02:13 PM   #2
Senior Member
SuperBike

Join Date: Aug 2009
Location: thorold ontario
Posts: 1,978
uchi is on a distinguished road
im interested in this too, also im wondering if gains are seen just by throwing this in? i have a 6 degree timing advance key on my sport quad and i hate it. it feels like its lost its bottom end and mid range, might have gained a little top end but not worth the work.
__________________


Jardine black SP one high mounts shortened 5"
D.I.D evr3 chain
AFAM -1/+2 sprockets
dynojet jet kit
racetech springs with heavier fluid
03 gsxr 750 calipers
galfer ss brake lines
ebc 320 mm rotors
ebc hh pads
k6 radial master
gsxr solo tail with undertail
speedohealer
shindy daytona damper
t rex no cut frame sliders
rear set spacers
cbr flush mounts
uchi is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 02:34 PM   #3
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Granada Hills, CA
Posts: 5,568
8541Hawk will become famous soon enough
a little advance down low gets the motor to accelerate a little quicker. It also can be a little dirtier as sometimes the advance does not allow all the fuel to burn so lots of mfrs have the ignition retarded a little too much down low so it produces less emissions.

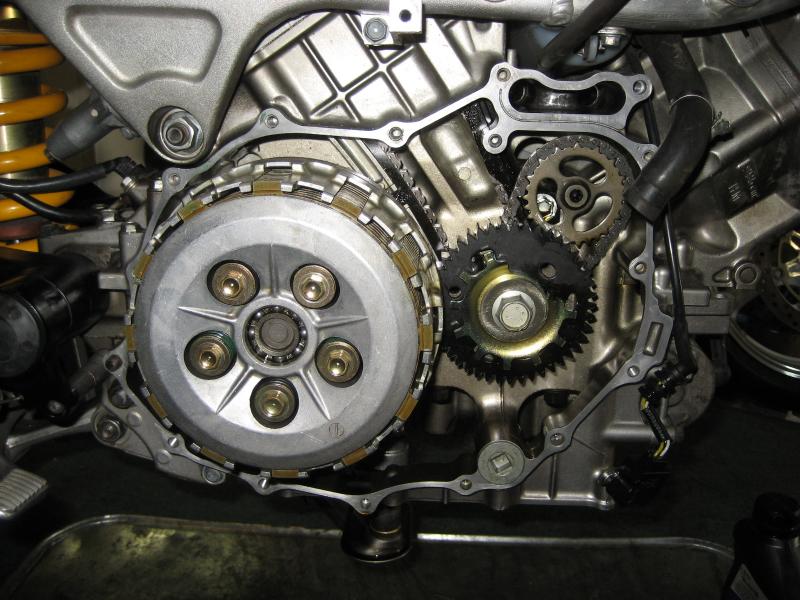

The advancer is the gold bit to the right of the clutch basket.

__________________
To err is human, to forgive is divine. Neither, however, is Marine Corps policy
8541Hawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 06:23 PM   #4
Senior Member
Back Marker

Spaz''s Avatar

Join Date: Sep 2007
Location: Vancouver WA, USA
Posts: 144
Spaz' is on a distinguished road
Here is a thread I started the other year when I reviewed my Factory Pro 4 degree ignition advance which was installed on my VTR996: http://superhawkforum.com/forums/showthread.php?t=14246

The point here in particular is to make note of the picture comparisons I put up - so look closely at what you have in there [in your engine.]


-Matt
__________________
2001 Honda Superhawk (Red... ...more low end torque ); Stock except for. TPS set to 510ohms, aftermarket windscreen, LED tail/turn signals, hand grip warmers, Pirelli Diablo Stradas, 15w-50 Mobil 1 motor oil; aprox. 33.6k miles on her as of 051510...
Spaz' is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 06:50 PM   #5
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
This is perfect - thank you 8541 and Spaz
__________________
2005 Super Hawk: Staintunes Exhausts, Ohlins Shock +1.0mm spacer, Racetech Fork Springs, Coerce Fork Brace, Helibars, F4i Ft Calipers and MC with EBC/HH Pads Ft & Rr, Galfer SS Brake & Clutch Lines, AllBalls Wheel / Stem Bearings, APEs, TPS mod, dePAIRed, BMC Filter, Factory 1.1 Jet Kit, T-Rex Sliders, Sargent Seat, Dunlop Q2s, Eastern Beaver Headlight Relays with PIAA Lamps, Puig Hugger and Touring Screen, DID X-ring +2 Rear, R1-RR. More to Come...
residentg is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 08:26 PM   #6
Senior Member
SuperSport

mboe794's Avatar

Join Date: Jul 2008
Location: Twin Cities
Posts: 501
mboe794 is on a distinguished road
I'll sell mine to whoever asks first. Used, but perfect condition. $50 shipped to lower 48.

-sold-
__________________
1998, JE 11.5:1 pistons, Factory Pro jets, BMC filter, Ignitech ECU, shortened Jardines, lightened flywheel, ported and polished, four exhaust cams degreed 101/106, EBC clutch springs, APE cct's, 600rr front brake system, braided lines, PAIR removed, R1 R/R, Shindy steering damper, JDM/F4i shock, RaceTech fork springs, G2-R valves, TMB fork brace, swingarm brace, spools, 520 chain 15/43, tapered steering bearings, short levers, Speedohealer

Last edited by mboe794; 06-03-2010 at 09:25 AM.
mboe794 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 09:15 PM   #7
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Quote:
Originally Posted by mboe794 View Post
I'll sell mine to whoever asks first. Used, but perfect condition. $50 shipped to lower 48.
Why are you seling it, (besides the cash)? Is it not helpful?

JB
__________________
2005 Super Hawk: Staintunes Exhausts, Ohlins Shock +1.0mm spacer, Racetech Fork Springs, Coerce Fork Brace, Helibars, F4i Ft Calipers and MC with EBC/HH Pads Ft & Rr, Galfer SS Brake & Clutch Lines, AllBalls Wheel / Stem Bearings, APEs, TPS mod, dePAIRed, BMC Filter, Factory 1.1 Jet Kit, T-Rex Sliders, Sargent Seat, Dunlop Q2s, Eastern Beaver Headlight Relays with PIAA Lamps, Puig Hugger and Touring Screen, DID X-ring +2 Rear, R1-RR. More to Come...
residentg is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-28-2010, 09:18 PM   #8
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Granada Hills, CA
Posts: 5,568
8541Hawk will become famous soon enough
Quote:
Originally Posted by residentg View Post
Why are you seling it, (besides the cash)? Is it not helpful?

JB
I can't speak for others but it works good in mine
__________________
To err is human, to forgive is divine. Neither, however, is Marine Corps policy
8541Hawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-29-2010, 09:21 AM   #9
Senior Member
SuperSport

mboe794's Avatar

Join Date: Jul 2008
Location: Twin Cities
Posts: 501
mboe794 is on a distinguished road
I was advised against using it with my high compression engine. I omitted it when I rebuilt with the JE's and lightened the flywheel. I'm very happy with how it's running without it. Doesn't seem to be necessary.

It did, however, make a noticeable improvement with a nearly stock motor. I recommend it.
__________________
1998, JE 11.5:1 pistons, Factory Pro jets, BMC filter, Ignitech ECU, shortened Jardines, lightened flywheel, ported and polished, four exhaust cams degreed 101/106, EBC clutch springs, APE cct's, 600rr front brake system, braided lines, PAIR removed, R1 R/R, Shindy steering damper, JDM/F4i shock, RaceTech fork springs, G2-R valves, TMB fork brace, swingarm brace, spools, 520 chain 15/43, tapered steering bearings, short levers, Speedohealer
mboe794 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-29-2010, 01:23 PM   #10
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,586
skokievtr is on a distinguished road
Quote:
Originally Posted by mboe794 View Post
I'll sell mine to whoever asks first. Used, but perfect condition. $50 shipped to lower 48.
New theyr'e $59 so 50 shpd aint bad, and I'll consider it...

but not tohyjack U but the SHFT-EVO-H77 for a reaonable price intrigues me more
skokievtr is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-29-2010, 01:30 PM   #11
Senior Member
MotoGP

8541Hawk's Avatar

Join Date: Aug 2007
Location: Granada Hills, CA
Posts: 5,568
8541Hawk will become famous soon enough
Quote:
Originally Posted by skokievtr View Post
New theyr'e $59 so 50 shpd aint bad, and I'll consider it...

but not tohyjack U but the SHFT-EVO-H77 for a reaonable price intrigues me more
Actually they are $75 from Factory Pro now

The web site is kind of messed up as it lists 2 different prices but they have gone up
__________________
To err is human, to forgive is divine. Neither, however, is Marine Corps policy
8541Hawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 05-29-2010, 03:39 PM   #12
Senior Member
SuperSport

Stevebis1's Avatar

Join Date: Sep 2008
Location: Delmar NY
Posts: 797
Stevebis1 is on a distinguished road
It's true they have gone up on the FP site but a number of distributors have them for less. $50 shipped is still by far the best and its not like a second hand one is worth less
__________________
99 Yellow Superhawk, VFR Clipons w/Throttlemeisters, Nemish forks, Micron CF slipons, Dynojet, BMCFilter, Dr Honda intake, Flo-commander, +4 advancer, CBR stick coils, Davies Electric water pump, F4i calipers & master, dePAIRed, Sargent seat, Airblade DB, flush signals, mototech undertail, Ciarlo CF Hugger, TRS HID, Integrated signal LED tail light, OEM finned R/R, 520ZVMX & 43t Stealth sprocket

82 Honda CX500 Turbo
92 Yamaha VXR (2)
98 Yamaha XT225 Serow
01 Yamaha LS2000
05 Merc SLK 350
Stevebis1 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 06-07-2010, 07:06 PM   #13
Senior Member
Superstock

salmanilla2000's Avatar

Join Date: Jul 2008
Posts: 344
salmanilla2000 is on a distinguished road
http://www.1tail.com/Targa/Ignition_...11-109/712405/
salmanilla2000 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
