MOSFET Regulator/Rectifiers - The Why & The How

Ok, since there has been a couple of people asking lately, both on the forums and in PM, how to tell what R/R's are MOSFET, I compiled a list...

Also, since I'm making a list, why not include my explanation that's currently buried in another thread on WHY you want MOSFET's in your R/R...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 09:34 AM   #2
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Part 01, How

How does the R/R work?

The R/R consists of two parts, the Rectifier and the Regulator... This is a very simplified image of the R/R...


The Rectifier is always made up out of "normal" diodes, but there are different type's of diodes, in varying degree's of effiency...

The Rectifier takes the AC voltage from the stator and converts it into DC voltage... That's accomplished by taking the "negative" part of the AC, and "re-routing" it with diodes so that it becomes "positive"... Simple explanation, simple physics, but not somehting we need to understand completely... Here is a picture to let you know in principle what the result is...


In the end, what the Rectifier produces is DC voltage that ripples around the 20-35V mark somewhere, depending on RPM...

The Rectifier part of the R/R produces heat from the diodes, but in terms of the total losses and heat production, this part is ridiculously small compared to the Regulator part... But, it is still affected by the total heat amount...

The second part, the Regulator, sit's like a spider in the net, looking at what the Rectifier does, and by shorting one of the three phases to ground for short bursts, it keeps the output voltage at the desired voltage for the bike...

The "diodes" that are used for switching the current to ground on and off are either thyristors, basically a diode with a third leg that acts as a switch, or MOSFETS, which are transistors functioning in a similar capacity. (and transistors are made up out of diodes in their most basic form)

Regardless of what type of "switch" you use, the act of switching it on or off casues large amounts of heat, and when fully on, shorting things to ground, that causes even more heat... That heat is usually much, much more than what the Rectifier produces... But both parts are equally affected by the heat...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 04-05-2011 at 01:40 AM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:10 AM   #3
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Part 02, Heat

What does heat do to the components?

The heat makes diodes of all types age faster, and if you have enough heat, the diode starts to change characteristics, making it less exact...

The loss of precision creates wilder swings between high voltage and low voltage, making the Regulator have to work harder to maintain the output voltage where it's supposed to be... And the harder it works, the more heat it produces, and then it looses even more precision... That creates a pretty steep downwards cycle...

The result of the ageing is obvious, first it becomes even less exact... Then it fails, when it cant keep up... And a diode can fail in two ways...

One, it can act as a fuse and stop conducting... The result of that is that the R/R produces lower voltage than specified and cant keep the battery fully charged... That slowly kills the battery, but the bike keeps working a good while before you notice anything...

Two, it fails by conducting both ways, or in the case of the switching diodes (thyristors) "leaking" when it's supposed to be shut off... That makes the R/R produce wildly varying voltage, lower or higher depending on what combination of diodes are currently conducting, something that again makes the R/R work harder... This results in the battery being overcharged, the bike doing "weird things", like popping fuses or randomly dying...

And eventually, the diode or thyristor short circuits, conducting both ways, or becoming unable to turn off... The result of that is a boiled over battery, smoldering electronics and a big hefty bill for repairing your bike...

But there are other things creating heat... One is corrosion on terminals in the wiring harness... It's bad in all places, but more catastrophic in the connector for the R/R, since it's already hot there... Soldering the terminals instead of crimping them makes it easier to keep them free of corrosion... Making sure that there is no way for moisture to get in there is another good tip...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 04-04-2011 at 10:26 AM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:21 AM   #4
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Part 03, The difference

What is the difference between a thyristor and a MOSFET based R/R?

The switches in the Regulator part are either type, but they both do the same thing... The rapidly turn on and off, shortcircuiting power to ground to keep voltage constant... That's called "Shunting", and almost every type of bike R/R used now is made this way...

Every time you short circuit something, it creates heat, just from the short circuit... That's the same for both types... But, the difference is in how you switch!

On a thyristor based R/R the most heat isn't from the shortcircuit, it's from the switching... A thyristor is basically a diode with a separate leg, acting as a switch... But the switch has a delay... The thyristor relies on the current flowing through it, to keep it open...

Basically the switch opens the door a crack, and then waits for the current to crash into the door, slamming it open... Closing it is similar... You slowly, slowly push the door closed enough until the current looses power and cant hold the door open, slamming it shut...

As a result, the thyristor is horribly inexact and inefficient... It takes time to switch, and it creates huge amounts of heat while doing it...

The MOSFET is a bit more intelligent... It doesn't rely on the current for opening the door, and it doesn't try to close it slowly... Instead the switch is really a switch... Switching it on means it starts to conduct fast, and switching it off means it stops almost as fast... That creates a lot less heat, and makes it more exact... A lot more exact...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:34 AM   #5
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Part 04, what to do about it...

Well, the smart move is to get a new MOSFET based R/R... You just need to know what type R/R is MOSFET based...

Now this is where a lot of you will start crying... Sorry...

The older Yamaha YZF-R1 R/R is a popular swap for the VTR... It greatly reduces failures... But... It isn't a MOSFET R/R... That means it will eventually fail...

Don't get me wrong, it's still a very good upgrade, it's infinitely more robust than the crappy OEM one... And since it's specified for 50W, and the VTR is specified for 35W, it's not working hard too keep up with demand, and that makes it age slower... So it will happily keep working twice the time an OEM one or a cheap OEM copy will... A MOSFET based R/R should never, ever fail from heat!

But, again... It's not an MOSFET... So it does create heat... And it does age...

So, now that you are all throwing your new replacement R/R's in disgust... Let's figure out how to find those that are MOSFET...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 04-04-2011 at 11:20 AM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:47 AM   #6
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Part 05, Finding an MOSFET R/R...

The "easy" way of knowing if a R/R is MOSFET based, is to look at the markings...

Almost all R/R's for motorcycles are made by Shindengen, and they supply all the manufacturers... Honda, Kawasaki, Yamaha and Suzuki and others...

A MOSFET R/R has a marking with FH-*** on it... The numbers tell the specific output and such... and an older thyristor based R/R is marked SH-*** same here, numbers tell the output... SH stands for shunt, and FH for "FET based shunt"... Ie MOSFET...

Now, it's pretty common that the sellers on eBay doesn't list an image with the markings, or write out the type... So here is a list of known MOSFET based R/R's... Keep in mind that the list is a work in progress, you might get an unsuitable R/R if you go by the list alone, look at the markings for FH-***...

Code:
Kawasaki
ZX-6R 2007-> Cut-n-splice... Either solder, or get both connectors from eastern beaver...
ZX-10 2004->
ZX14 2006->
Concours 2008-> Both MOSFET and non-MOSFET available, beware! (And the tyristor based one seems to need a larger load than the VTR to work)

Yamaha
FZ1 2007->
YZF-R1 2007->
YZF-R1 2004-2006 - Works, but has large fins, making it hard to fit...
FJ1300 2007->
Wildstar 1300 2007->

Honda
CBR 1000RR 2004-2007 - Both MOSFET and non-MOSFET available, BEWARE! Cut-n-splice
CBR 1000RR 2008-> Odd connectors, no plugs available, use spade connectors...
CBR 600RR 2003-2006 - Both MOSFET and non-MOSFET available, BEWARE! Cut-n-splice
CBR 600RR 2007-> Cut-n-splice
All the Yamaha R/R's use the type of connectors that you can get from www.easternbeaver.com and those are waterproof... That makes it easy to splice the new wiring in, and making sure you don't get moisture and resistance from that...

Some of the Kawasaki one's use the same plugs as the Yamaha's, some are the cut-n-splice variety like the Honda's...

You can use normal spade connectors on these, instead of the connectors and save you some money... But it qualifies as monumentally stupid...

The Honda R/R's are different... They all come with Honda's own plugs... Not waterproof, and stupid design to boot... Cut them off and replace them with good quality waterproof & high amperage connectors, or just solder the wiring and use shrinktube to keep it moisture free...

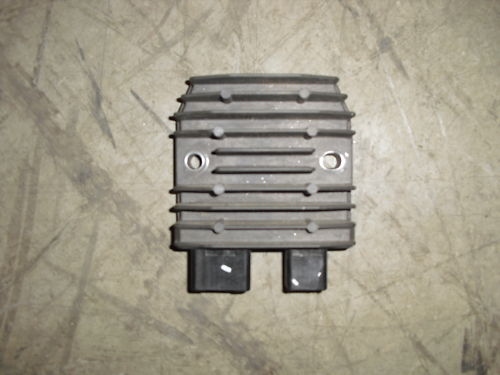

Example of the ZX10/ZX14 Kawasaki one and 2007 -> R1...

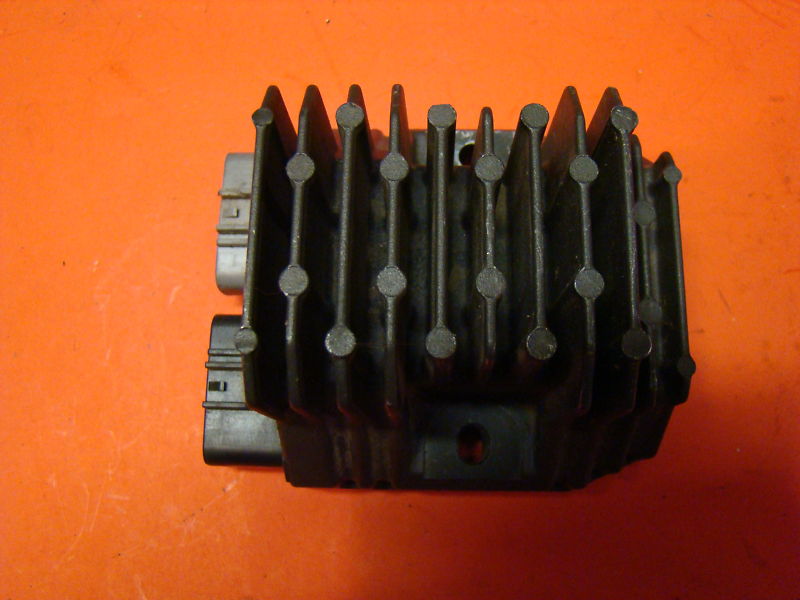

Example of the "older" 2004-2006 R1... Works the same, just big and hard to fit under the tail cowling...

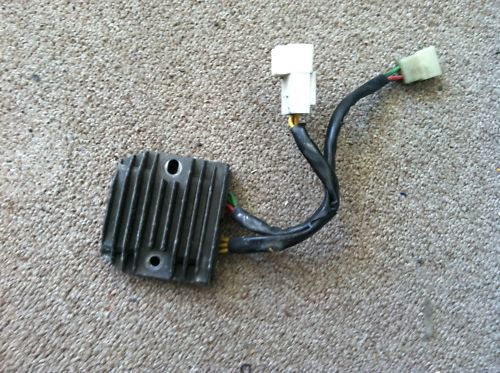

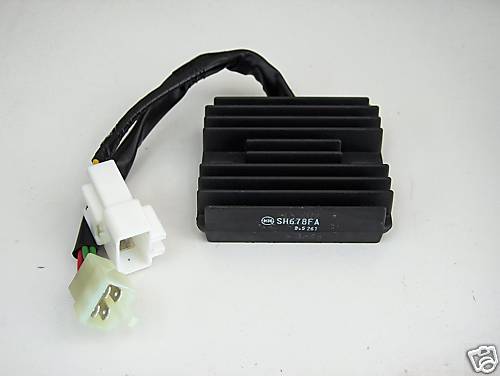

Two CBR 600RR regulators... Both fit 2003-2006... But one is not a MOSFET one... Looks a bit different, but only trust the markings...

CBR 1000RR regulator 2008->... Please note the stupid connectors... Start soldering... Olders look different, and apparently there are non MOSFET one's as well as MOSFET before 2008, so beware...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 05-02-2011 at 01:35 AM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:49 AM   #7
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Part 06, why old R/R's and new batteries doesn't mix well...

As a result of this, a typical thyristor based R/R will produce 13.5-14.5V if it's healthy... And in semi healthy condition usually 13.2-14.8V... But depending on the temperature in the R/R, RPM and how fast the RPM changes it will swing wildly between these values at random...

A MOSFET based R/R in new condition usually provides 13.5-14.5V, and in semi healthy condition (which takes about 20-30 times longer than the thyristor's to age into) the same 13.2-14.8V...

But... And that's a pretty important but... The MOSFET R/R tends to go towards middle voltage at just off idle RPM, and then towards lower voltage at high RPM, with only small peaks towards higher voltage usually when the RPM's change... Also the swings are slower, more controlled...

A SLA want's 13.8-14V or soo to charge, a GEL usually want's 14.1-14.2V to charge... Most SLA's "boil" and get reduced lifetime if the spend to much time above roughly 14.2V, same goes for GEL's at 14.5V... Drop to low and they simple stop charging... Just below optimal charging and you get "maintainance mode" as in most chargers...

This means that as long as the battery is in good condition it has no problems coping with a semi reliable R/R of either type... But a thyristor based R/R will age it sooner, and ages itself sooner... And then you get problems...

A MOSFET based R/R keeps the battery lasting longer, keeps the voltage more constant, which is good for the ECU/CDI, the electronics in the gauges, the fuses and also keeps the lightbulbs in your headlight happy since it likes just above 14V to make peak light output (provided you have decent wiring too it)...

Both types will make fireworks and smoke when they battery boils over if a diode in the Rectifier decides to go wide open, and both will stop charging the battery if it fuses... But a MOSFET Regulator takes a very, very long time to go "bad" enough to create the heat needed for damaging the Rectifier diodes... Corroded connectors are obviously something that affects both equally in terms of resistance/heat...



Now for the LiFePo's... They like to be charged at 13.6-14.4V, and very, very optimally at around 13.8V... They highly dislike going above 14.4V since that charges them very rapidly with no real way for them to dissapate the heat, and charging to much at lower than 13.4V will build up internal resistance which reduces lifetime...

So a thyristor based R/R in peak condition will work decently... But only in peak condition... A MOSFET one will work even in semi decent condition since it rarely peaks and if it does it's a short time... It might reduce lifetime, but it's unlikely to blow stuff up...

The LiFePo's are no more volatile than SLA or GEL batteries when they go poof, infact they tend to make less damage since the chemicals don't eat through aluminium, and also since they contain much smaller volumes of chemicals simply becuase they are much smaller... But the margin for error is a bit less...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 04-04-2011 at 11:25 AM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 11:20 AM   #8
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
I'm pretty sure there are other type R/R's around that uses MOSFET... Feel free to post up any you know of... Or ask any question you might like... But READ THE ABOVE FIRST... I'll probably just ignore you if you ask something I already posted...

Oh... And would a Moderator please, please, pretty please with sugar on top, make this a sticky?
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 11:49 AM   #9
Senior Member
SuperSport

kai ju's Avatar

Join Date: Jun 2005
Posts: 520
kai ju is an unknown quantity at this point
Tweety,

I don't have my VTR anymore, but you keep me coming back.
Thanks for the continuing education.
Speaking off, what does MOSFET stand for.

Kai Ju

Last edited by kai ju; 04-04-2011 at 12:02 PM.
kai ju is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 12:10 PM   #10
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Quote:
Originally Posted by kai ju View Post
Tweety,

I don't have my VTR anymore, but you keep me coming back.
Thanks for the continuing education.
Speaking off, what does MOSFET stand for.

Kai Ju
Metal Oxide Semiconductor makes MOS, and Field Effect Transistor makes FET... Ie both the name of the semiconductor type (semiconductor = diode, very loosely) and the actual type of circuit...

BTW, just about any older R/R on any bike will be a good candidate to swap to a MOSFET type R/R... They might not be as universally stupid in their desing as the old VTR OEM one, without fins... But they still fail on frequent basis...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 04-04-2011 at 12:18 PM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 12:22 PM   #11
Senior Member
SuperSport

kai ju's Avatar

Join Date: Jun 2005
Posts: 520
kai ju is an unknown quantity at this point
MOSFET

I looked it up here: MOSFET - Wikipedia, the free encyclopedia, started reading the article and now I have a headache........
kai ju is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 12:27 PM   #12
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Quote:
Originally Posted by kai ju View Post
I looked it up here: MOSFET - Wikipedia, the free encyclopedia, started reading the article and now I have a headache........
I can understand that... I know most of it, but it still would give me a headache to plow through...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 01:01 PM   #13
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,586
skokievtr is on a distinguished road
Thanks Markus,

I'll take a read through your dissertation and get back to you if I have any questions. We all really appreciate your input and the amount of time you spend providing it. Of course I also think you enjoy doing so, and maybe actually can't help yourself.

I'm the same way in regard to other areas within my "expertise".

BTW, what prompted my PM was I routinely monitor my battery voltage and VR-R output. The other day the VR-R was outputting about 14.42v at 1,300 rpm and only 13.4v at 5,000+ rpm. I still am running the original 03-97 VR-R in my VTR, and, believe it or not, am on only my 2nd battery. However, years ago I applied heat sink paste to the back of the VR-R where in contacts the steel subframe; bonded a CPU heat-sink with a fan to this VR-R; installed a fresh air intake duct under the right seat cowl with its opening just behind the rear brake master cylinder; drilled several exhaust holes in the bottom of the cowl a few inches to the rear of the VR-R (and largely also out of sight); and applied a clear vinyl reverse NACA duct over the exhaust holes to help draw more air out. Furthermore, as I operate several electrical accessories (radar detector, twin 55w driving lights, a heated vest and grips, GPS, neon license plate surround tied into the brake circuit, etc; all monitored by a LED voltage meter but on only the 280w available!), I apparently draw off enough amperage that the VR-R does not have to "work" that hard and get too hot. I also made my own headlight battery harness (similar to Eastern Beavers' but may get one of Jim's because the wire gauge is heavier and his relays are half the size of those I used). I also run a headlight modulator, and converted the tail light to LED per the SHF thread. Whereas I've been told it is NOT the thing to do, I also usually keep the battery connected to a Deltran Battery Tender (BT) when I don't ride every day. I replaced the BT battery output cord with a coaxial plug that also mates to my electric vest and a dual cigarette lighter accessory plug into which I can charge my cell phone and run the "micro" tire pump I fabricated.

Cheers!
skokievtr is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 01:10 PM   #14
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Well, you got me... I kind of like giving back... I have learned a lot from this forum, so in the area's I know stuff, if I can help... Well, I enjoy doing it...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 01:53 PM   #15
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,586
skokievtr is on a distinguished road
Quote:
Originally Posted by Tweety View Post
Well, you got me... I kind of like giving back... I have learned a lot from this forum, so in the area's I know stuff, if I can help... Well, I enjoy doing it...
If you ever need advice on "plastics", welding & brazing, metallurgy, structural, anything about aerospace, and building technology (new and renovation); let me know...
skokievtr is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 02:19 PM   #16
Senior Member
Back Marker

ninjagoalie's Avatar

Join Date: Jan 2011
Location: Sunny Central Illinois
Posts: 160
ninjagoalie is on a distinguished road
really great information, Tweety! Forgive my ignorance, but do you work with this sort of thing or are you just a freakin genius??? I may have to read through it 3 or 4 times to really get it all straight. I did look at my R/R and saw that it was apparently replaced by the PO, but I will be wanting to look at it again now to determine what type it is.
ninjagoalie is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 03:22 PM   #17
Senior Member
SuperSport

geekonamotorcycle's Avatar

Join Date: Jan 2011
Location: Tampa Florida
Posts: 521
geekonamotorcycle is on a distinguished road
Very nice thank you tweety
__________________
One day I hope to obey every law on the road because I know everyone in here bought that fast motorcycle so they could be model citizens. Doesn't everyone have their own private racetrack?
http://geekonamotorcycle.com

geekonamotorcycle is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 04:59 PM   #18
Member
Squid

majordomo490's Avatar

Join Date: Apr 2010
Location: NorCal
Posts: 85
majordomo490 is on a distinguished road
Thanks Tweety. That was a lot of work and you explained it very well, in your second language - amazing stuff!
majordomo490 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 05:12 PM   #19
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,794
7moore7 is on a distinguished road
Quote:
Originally Posted by majordomo490 View Post
Thanks Tweety. That was a lot of work and you explained it very well, in your second language - amazing stuff!
I think English may be his third or fourth language- what are you up to now, tweety, like seven?
__________________
7moore7 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 05:40 PM   #20
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Quote:
Originally Posted by ninjagoalie View Post
really great information, Tweety! Forgive my ignorance, but do you work with this sort of thing or are you just a freakin genius??? I may have to read through it 3 or 4 times to really get it all straight. I did look at my R/R and saw that it was apparently replaced by the PO, but I will be wanting to look at it again now to determine what type it is.
Quote:
Originally Posted by geekonamotorcycle View Post
Very nice thank you tweety
Quote:
Originally Posted by majordomo490 View Post
Thanks Tweety. That was a lot of work and you explained it very well, in your second language - amazing stuff!
Thanks for the props guys...

Really, it took me all of an hour of effective time writing it... Not that much work... I had already done the research on the actual list, and the other stuff is basic to me... I'm an Electrical Engineer, so I know that stuff backwards... To me it's like water being wet, and things falling towards the ground... It's just the way things are...

Quote:
Originally Posted by 7moore7 View Post
I think English may be his third or fourth language- what are you up to now, tweety, like seven?
Still qualifies as a second language I think though... Yeah, i can abuse seven languages in spoken and written from, but as an EE, english is pretty much my "work language"... I'm used to writing long and boring reports in english...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 06:36 PM   #21
Member
Squid

majordomo490's Avatar

Join Date: Apr 2010
Location: NorCal
Posts: 85
majordomo490 is on a distinguished road
tweety, I have a question regarding zenor diode type systems, would you mind if I pm you I don't want to thread hijack?
majordomo490 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 08:53 PM   #22
Senior Member
MotoGP

nuhawk's Avatar

Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,133
nuhawk is on a distinguished road
Send a message via MSN to nuhawk
All good stuff Tweety but I thought we had this all sorted with our member Spark - something that was building his own RR - it all sounded good and I never needed one but it did sound like he was game on. What's up with his tech?
__________________
Barnett clutch, Racetech/Hawkrider FE Rebuild, Pro-Lite Rotors, Gixxer 6-pot calipers, Powers, Penske, SS lines, HH Pads, All Ballz, Heli's, DB Lite Smoke, Factory Pro Jets - Shifter Kit and +4 Ignition Advancer, APE's, Micky's Fantastic Stacks, K&N, Trucker Fork Brace, Motion Pro Signals, Renthal Grips, Pair Block-off plates, R-6 Mirrors, Carbon Hugger, JetHot stock header, Jardine Mids with Polished AL Cans, Speedohealer, 15/41/520 Afam Sprockets, DID Chain
nuhawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 08:55 PM   #23
Senior Member
MotoGP

nuhawk's Avatar

Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,133
nuhawk is on a distinguished road
Send a message via MSN to nuhawk
Circuit Burner was his handle.
__________________
Barnett clutch, Racetech/Hawkrider FE Rebuild, Pro-Lite Rotors, Gixxer 6-pot calipers, Powers, Penske, SS lines, HH Pads, All Ballz, Heli's, DB Lite Smoke, Factory Pro Jets - Shifter Kit and +4 Ignition Advancer, APE's, Micky's Fantastic Stacks, K&N, Trucker Fork Brace, Motion Pro Signals, Renthal Grips, Pair Block-off plates, R-6 Mirrors, Carbon Hugger, JetHot stock header, Jardine Mids with Polished AL Cans, Speedohealer, 15/41/520 Afam Sprockets, DID Chain
nuhawk is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:29 PM   #24
Senior Member
Back Marker

Join Date: Aug 2010
Posts: 103
t99ford is on a distinguished road
Quote:
Originally Posted by Tweety View Post
Part 01

The "diodes" that are used for switching to current to ground on and off are either tyristors, or MOSFET's, basically a diode with a third leg that acts as a switch...
Not parting hairs, Tweety, as I know you know this, but I think it would be helpful to add to this statement as follows:

Quote:
"The "diodes" that are used for switching to current to ground on and off are either thyristors, basically a diode with a third leg that acts as a switch, or MOSFETS, which are transistors functioning in a similar capacity."
As you know, I just spent some time teaching myself all about the above (even making a post describing the function of each), and it was very helpful to me to keep them distinguished. I know that you delineated between the two later on, but as this was early in the post, I figured it might be helpful to make this distinction.

If you don't think so, I bow out to your credentials in the field...
__________________
Healthy is merely the slowest rate at which you can die
t99ford is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2011, 10:51 PM   #25
Member
Squid

koth442's Avatar

Join Date: Feb 2011
Location: West Sacramento
Posts: 38
koth442 is on a distinguished road
Fantastic thread bro. I'm currently replacing my R/R (really popular subject on this forum). So now I actually kinda sorta have an idea of what's going on. Course I bought mine from a 04 R1 but hey, it was 35 with shipping.
koth442 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-05-2011, 01:33 AM   #26
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Quote:
Originally Posted by majordomo490 View Post
tweety, I have a question regarding zenor diode type systems, would you mind if I pm you I don't want to thread hijack?
PM away...

Quote:
Originally Posted by nuhawk View Post
All good stuff Tweety but I thought we had this all sorted with our member Spark - something that was building his own RR - it all sounded good and I never needed one but it did sound like he was game on. What's up with his tech?
AFAIK Circuitburner used MOSFET's... But it seems he has dissapeared, and created a bit of controversy, some members are quite unhappy... Not the time or place, look in older threads for more info...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-05-2011, 01:36 AM   #27
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Quote:
Originally Posted by t99ford View Post
Not parting hairs, Tweety, as I know you know this, but I think it would be helpful to add to this statement as follows:



As you know, I just spent some time teaching myself all about the above (even making a post describing the function of each), and it was very helpful to me to keep them distinguished. I know that you delineated between the two later on, but as this was early in the post, I figured it might be helpful to make this distinction.

If you don't think so, I bow out to your credentials in the field...
Well, I'll gladly make that edit, I clearly see the benefit in clarity...

Buuut... You do know what makes up that transistor, do you? Diodes... So in the end, it's all the same...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-05-2011, 07:27 AM   #28
Senior Member
Back Marker

Join Date: Aug 2010
Posts: 103
t99ford is on a distinguished road
Maybe I understood it wrong, but what I had determined was that the MOSFET and thyristor diode were both reliant on semiconductor properties, but use those properties are used entirely differently. The thyristor is actually a diode with a third leg, whereas the MOSFET transistor functions much differently due to its makeup and properties. I don't really understand where a transistor is made up of small diodes. which is what I understand your statement to mean. Could you clarify that part of your statement, for my benefit?
__________________
Healthy is merely the slowest rate at which you can die
t99ford is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-05-2011, 07:38 AM   #29
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,031
Tweety is on a distinguished road
Well... The clue here is "semi-conductor"... It does actually mean in it's most base meaning something that conducts partially... And a diode is in it's most base form is something that only conducts in one direction... Ie a semiconductor...

The more complex transistor is merely a net of diodes, resistors and other basic components if you look at it broken down into it's most basic and fundamental parts... But in miniture, and done in a different way...

Hence they all qualify as diode's and they all in a sense come from the same scientific discovery, long, long ago... The rest is just a way of differentiating between different uses, but basically all electric components, no matter how complex, can in a purely functional way be replaced by the most basic and fundamental parts that make up an electric curcuit... It's highly impractical... But possible...
__________________
With me you get a package deal... The sarcasm comes free with the advice... If you wan't one or the other, use search...
<--- The result of OCMD... I gave up listing the mods in the sig...

Last edited by Tweety; 04-05-2011 at 07:41 AM.
Tweety is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-05-2011, 08:36 AM   #30
Senior Member
SuperSport

jay956's Avatar

Join Date: Aug 2009
Location: Richmond, VA
Posts: 678
jay956 is on a distinguished road
i got a 08 R1 r/r, i was under the assumption that was a mosfet unit... though im not positive
